Drilling Precautions

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Activation

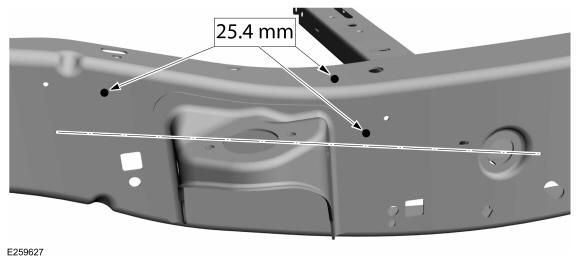

  1. If a hole must be drilled in the frame the following requirements must be followed:

    • The hole is at least the specified distance from the edge of the nearest hole.

    • The edge of the drilled hole is at least the specified distance from the edge of the flange.

    • The hole is at least the specified distance above the frame centerline.

    • The drilled hole is at least the specified distance from any other existing bracket or component of the frame.

GFD546690Courtesy of FORD MOTOR COMPANY
