Sunload Sensor: Removal

WARNING: This page is about a different car, the 2020 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.

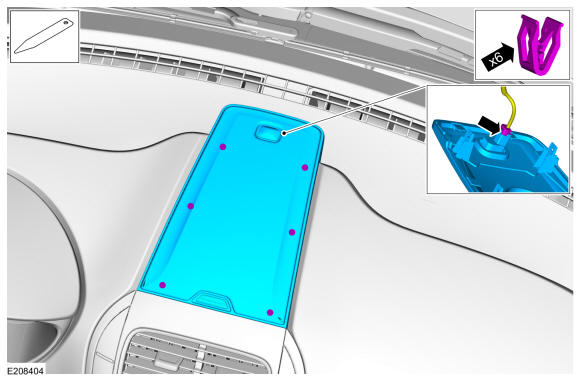

  1. Release the clips and remove the instrument panel center upper trim panel. Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover
    GFD539866Courtesy of FORD MOTOR COMPANY

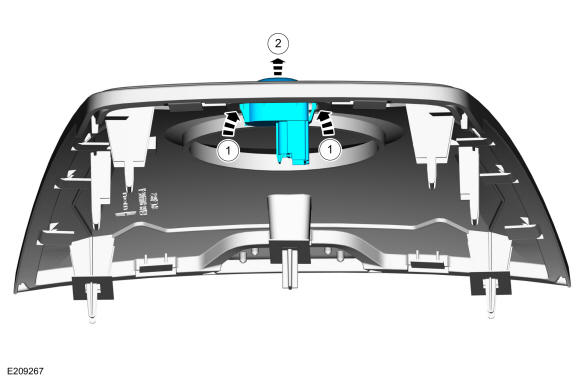

  2. Remove the sunload sensor.
GFD539867Courtesy of FORD MOTOR COMPANY
