In-Vehicle Temperature and Humidity Sensor: Removal

WARNING: This page is about a different car, the 2020 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.

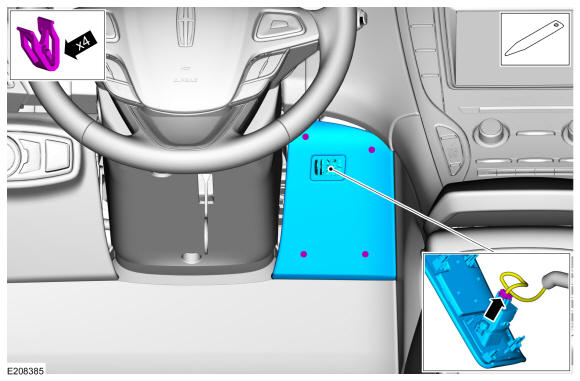

  1. Release the clips and remove the steering column opening trim panel. Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover
    GFD539856Courtesy of FORD MOTOR COMPANY

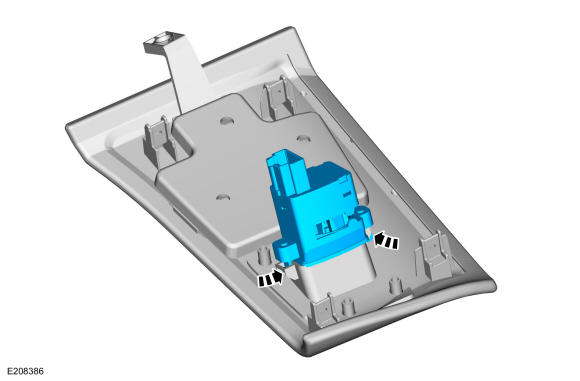

  2. Remove the in-vehicle temperature and humidity sensor.
GFD539857Courtesy of FORD MOTOR COMPANY
