Electronic Engine Controls - Component Location

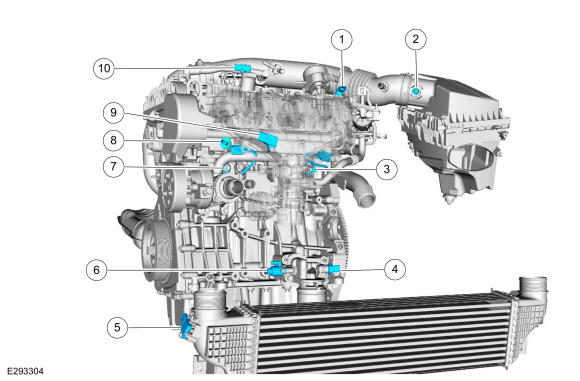

Electronic Engine Controls- Front
| Item | Description |
|---|---|
| 1 | Intake CMP sensor |
| 2 | IAT sensor |
| 3 | KS rear |
| 4 | EOP sensor |
| 5 | Turbocharger Boost Pressure Sensor |
| 6 | Oil pressure control solenoid |
| 7 | KS front |
| 8 | FRP sensor |
| 9 | MAPT sensor |
| 10 | Crankcase pressure sensor |

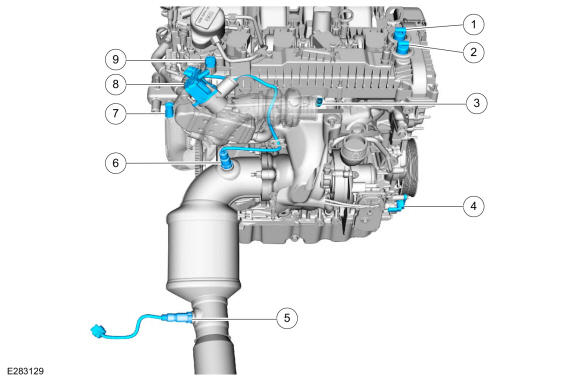

Electronic Engine Controls - Rear
| Item | Description |
|---|---|
| 1 | Intake VCT oil control solenoid |
| 2 | Exhaust VCT oil control solenoid |
| 3 | CHT (CHT2) sensor |
| 4 | CKP sensor |
| 5 | Catalyst monitor sensor |
| 6 | HO2S |
| 7 | ECT sensor |
| 8 | Turbocharger bypass valve |
| 9 | Exhaust CMP sensor |

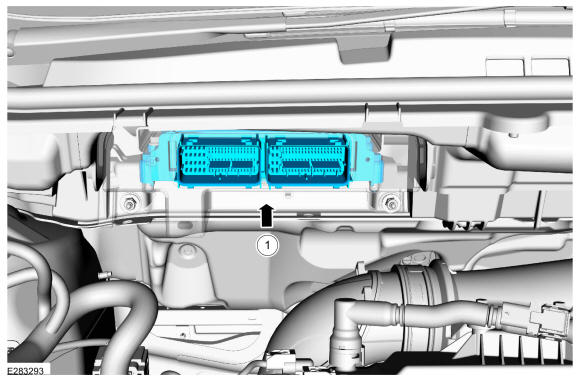

Powertrain Control Module (PCM)
| Item | Description |
|---|---|
| 1 | PCM |
