Section 203 (Climate Control System - General Information)
>>
Description And Operation
>>
Climate Control System - System Operation and Component Description
>>

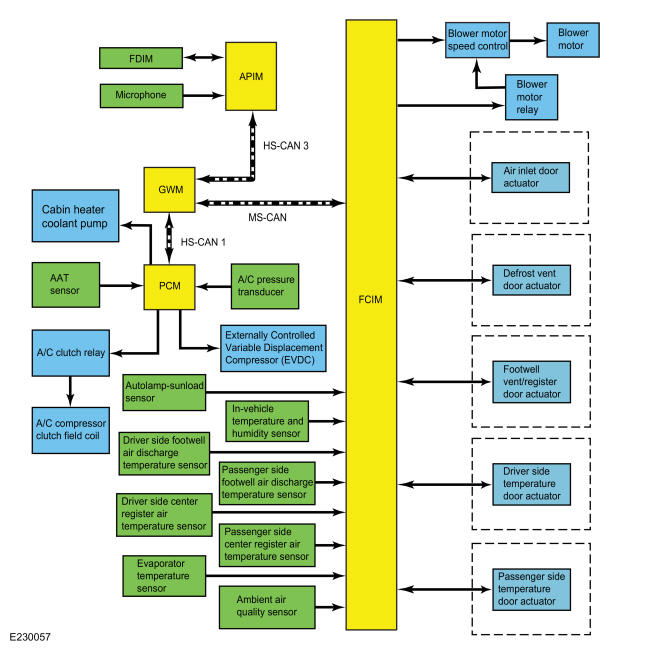

System Diagram
System Diagram
WARNING:
This page is about a different car, the 2019 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
