Engine Mount Control Solenoid: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

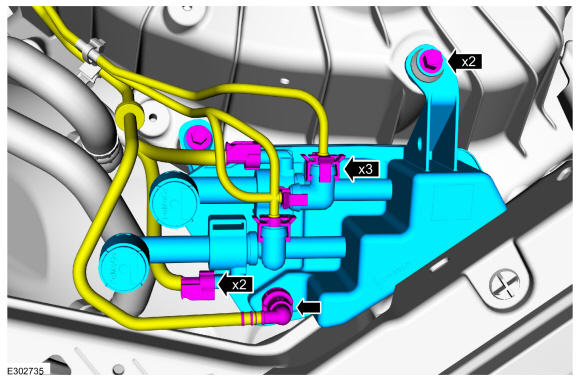

  1. Disconnect the electrical, and the vacuum hose connectors. Remove the retainer and the engine mount control solenoid.

    Torque: 89 lb.in (10 Nm)

GFD531845Courtesy of FORD MOTOR COMPANY
