Fuel Level Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the fuel pump sender unit. Refer to: Fuel Pump and Sender Unit .
  2. Disconnect the electrical connector.

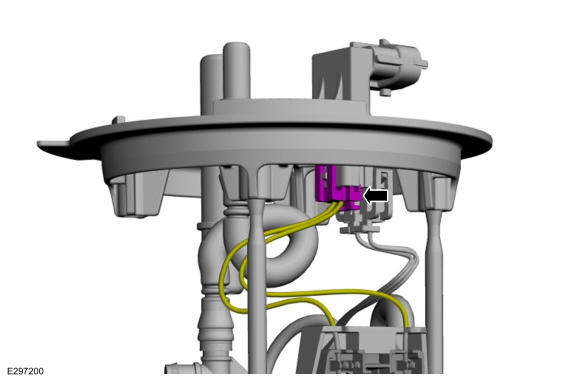

    GFD533398Courtesy of FORD MOTOR COMPANY
    1. NOTE: Take extra care not to damage the fuel tank level sensor float and arm.

      Release the retainer tab.

    2. Remove the Fuel Level Sender.

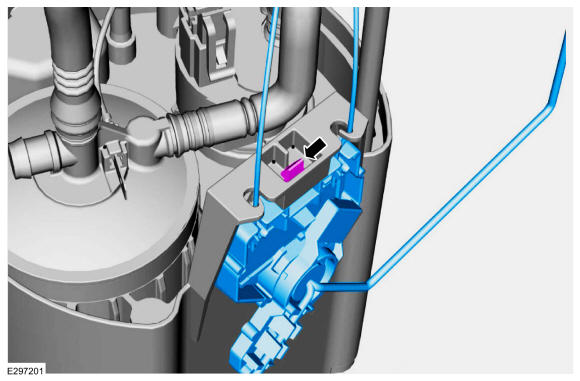

GFD533399Courtesy of FORD MOTOR COMPANY
