Front Seat Control Switch: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

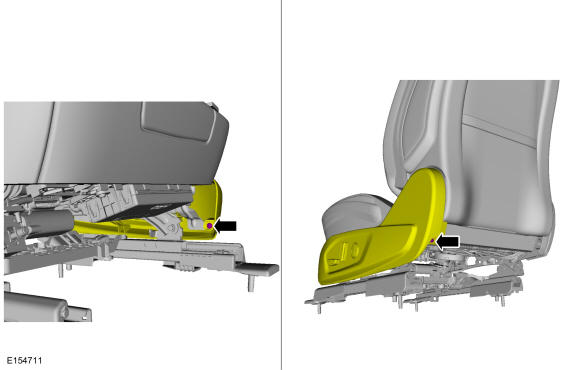

  1. Remove the side shield screws and position aside the side shield.
    GFD230245Courtesy of FORD MOTOR COMPANY

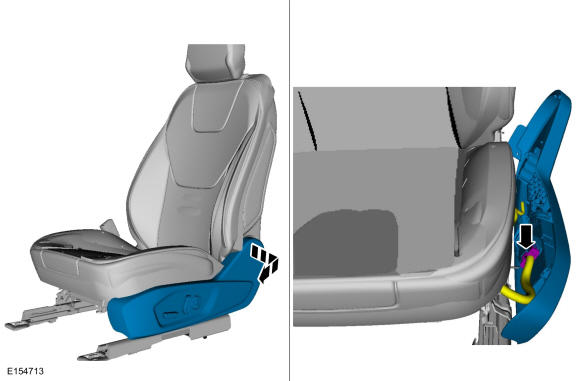

  2. Pull the rear of the side shield out and slide the side shield forward. Disconnect the electrical connector and remove the side shield.
    GFD230209Courtesy of FORD MOTOR COMPANY

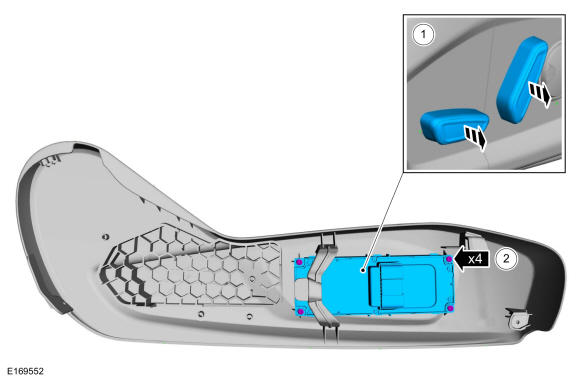

    1. Remove the seat control switch knobs.
    2. Remove the screws and the seat control switch.
GFD230246Courtesy of FORD MOTOR COMPANY
