Driver Front Seat Module (DSM): Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. NOTE: This step is only necessary when installing a new component.
    NOTE: The PMI process must begin with the current DSM installed. If the current DSM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

    Using a diagnostic scan tool, begin the PMI process for the DSM following the on-screen instructions.

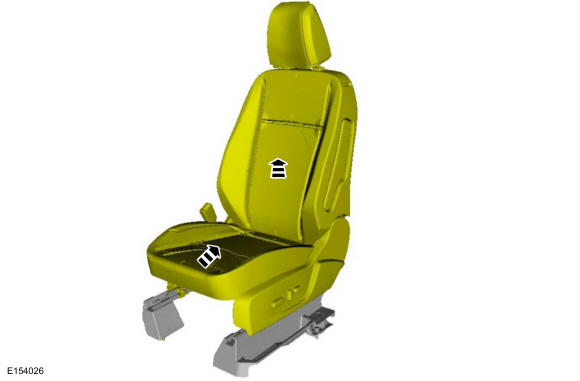

  2. Move the driver front seat to the full rearward and full upward position.
    GFD230216Courtesy of FORD MOTOR COMPANY

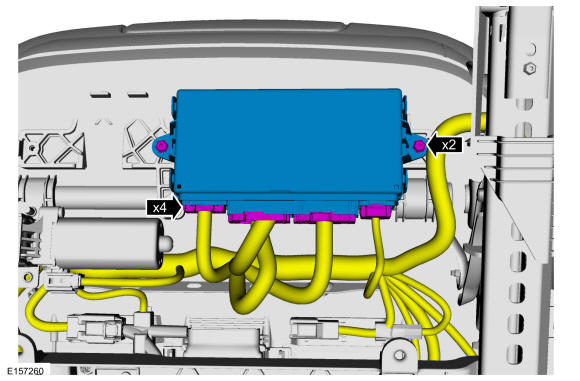

  3. Disconnect the 4 electrical connectors, remove 2 screws and the DSM.

    Torque: 44 lb.in (5 Nm)

GFD230217Courtesy of FORD MOTOR COMPANY
