Trailer Module (TRM): Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the TRM following the on-screen instructions.

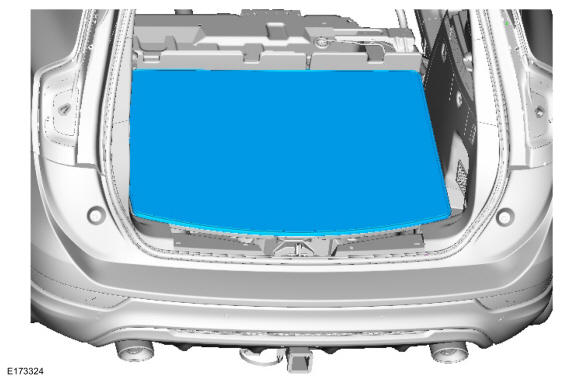

Remove the loadspace floor panel.

Courtesy of FORD MOTOR COMPANY

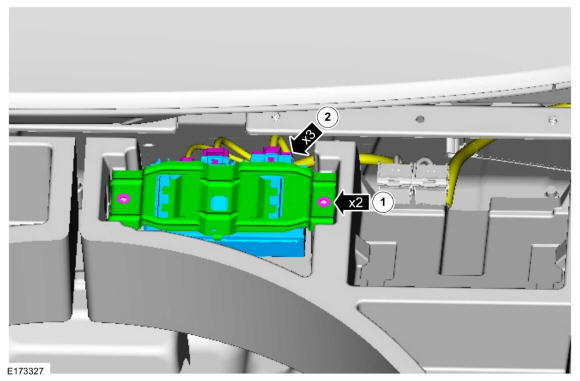

1. Remove the 2 screws and the trailer module bracket.
2. Disconnect 2 electrical connectors and remove the trailer module.

Courtesy of FORD MOTOR COMPANY
