Headlamp Control Module (HCM): Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the glove compartment. REFER to: Glove Compartment .

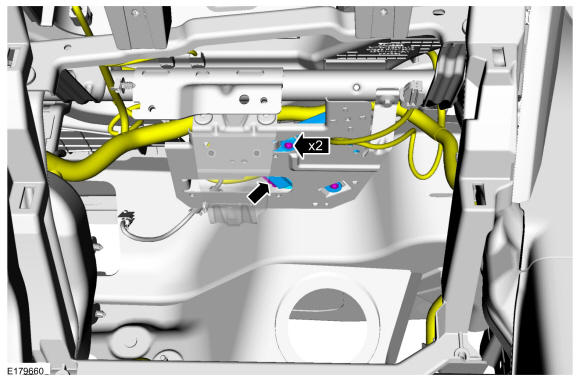

  2. Remove the headlamp control module screws then disconnect and remove the headlamp control module.
GFD229913Courtesy of FORD MOTOR COMPANY
