Fuel Pump Driver Module (FPDM): Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: Do not work on the fuel system until the pressure has been released and the engine has cooled. Fuel in the high-pressure fuel system is hot and under very high pressure. High-pressure fuel may cause cuts and contact with hot fuel may cause burns. Failure to follow these instructions may result in serious personal injury.
WARNING: Clean all fuel residue from the engine compartment. If not removed, fuel residue may ignite when the engine is returned to operation. Failure to follow this instruction may result in serious personal injury.
  1. Remove the left rear C-Pillar Lower Trim Panel Refer to: C-Pillar Lower Trim Panel .
  2. Disconnect the FPDM electrical connectors.
    GFD377233Courtesy of FORD MOTOR COMPANY
  3. Remove the lower FPDM retaining nuts and then remove the lower FPDM.
    GFD377234Courtesy of FORD MOTOR COMPANY

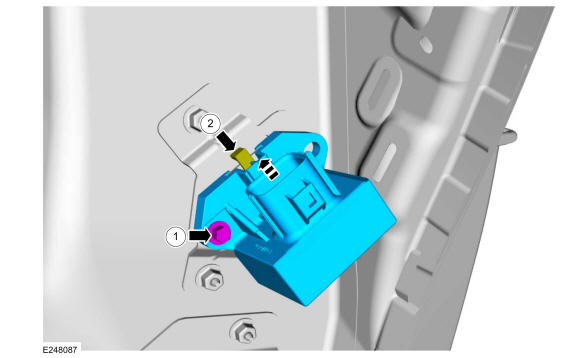

    1. Remove the upper FPDM retaining bolt.
    2. Release the retaining tab and then slide the upper FPDM off of the mounting bracket to remove.
GFD377235Courtesy of FORD MOTOR COMPANY
