Fuel Pump Driver Module (FPDM): Installation
WARNING: This page is about a different variant/trim than selected.
-

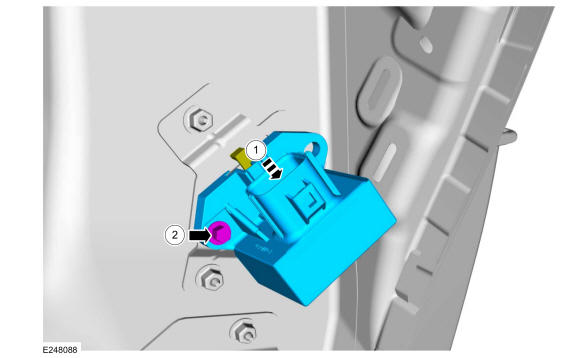

- Install the upper FPDM to the bracket until it the retaining tab clicks into place.
- Install and tighten the upper FPDM retaining bolt.
Torque: 13 lb.in (1.5 Nm)

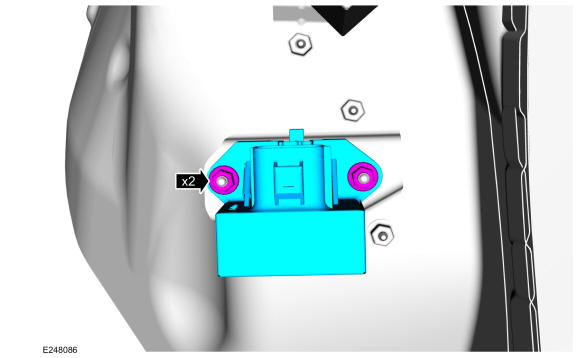

- Install the lower FPDM, then install and tighten the FPDM retaining nuts.
Torque: 13 lb.in (1.5 Nm)

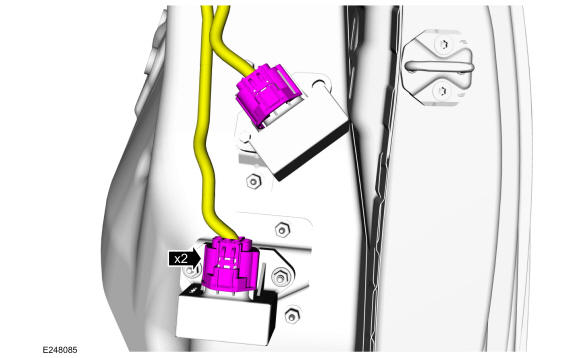

- Connect the FPDM electrical connectors.
- Install the left rear C-Pillar Lower Trim Panel Refer to: C-Pillar Lower Trim Panel .
