Cruise Control Module (CCM): Removal

WARNING: This page is about a different car, the 2017 Ford Police Interceptor Utility and 2017 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

1.

Remove the front bumper cover. REFER to: Front Bumper Cover .

Cruise control module (CCM)

2.

Disconnect the CCM electrical connector.

GFD125221

Courtesy of FORD MOTOR COMPANY

3.

Separate the grommets and remove the CCM.

GFD127584

Courtesy of FORD MOTOR COMPANY

4.

Inspect the grommets for damage.

GFD125222

Courtesy of FORD MOTOR COMPANY

5.

Replace any damaged grommets.

GFD127585

Courtesy of FORD MOTOR COMPANY

Cruise control module (CCM) bracket

6.

Disconnect the CCM electrical connector.

GFD125221

Courtesy of FORD MOTOR COMPANY

7.

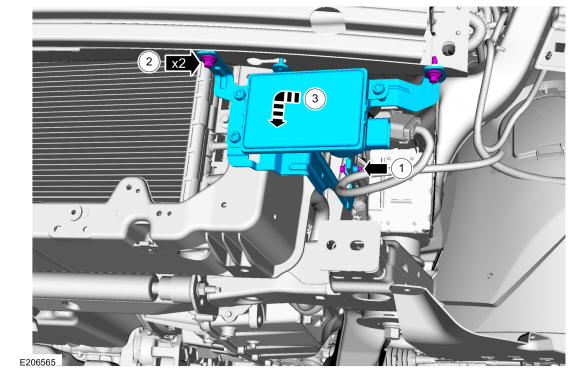

Remove the CCM an bracket assembly.
1. 1.

  Remove the rear bolt.
  Torque

  : 71 lb.in (8 Nm)
1. 2.

  Remove the front bolts.
  Torque

  : 71 lb.in (8 Nm)
1. 3.

  Position the CCM and bracket assembly to the left and down to release the assembly from the bumper.

GFD125223

Courtesy of FORD MOTOR COMPANY
