Fuel Pump Driver Module (FPDM): Installation

WARNING: This page is about a different car, the 2018 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

Fuel Pump Driver Module - Lower

  1. Install the fuel pump driver module, then install and tighten the fuel pump driver module retaining nuts.

    Torque: 13 lb.in (1.5 Nm)

    GFD236332Courtesy of FORD MOTOR COMPANY
  2. Connect the fuel pump driver module electrical connector.
    GFD236331Courtesy of FORD MOTOR COMPANY
  3. Install the right rear air deflector, install the pushpin, then install and tighten the right rear air deflector retainers.

    Torque: 13 lb.in (1.5 Nm)

    GFD236330Courtesy of FORD MOTOR COMPANY

    Fuel Pump Driver Module - Upper

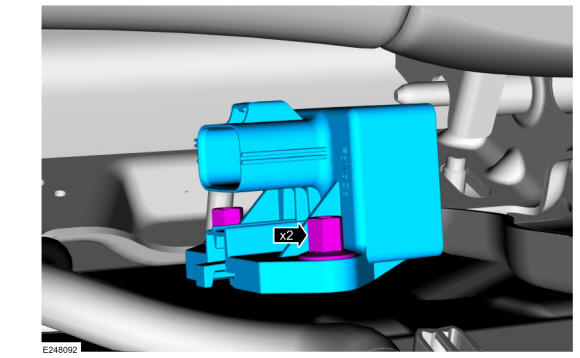

  4. Install the fuel pump driver module, then install and tighten the fuel pump driver module retaining nuts.

    Torque: 13 lb.in (1.5 Nm)

    GFD236382Courtesy of FORD MOTOR COMPANY

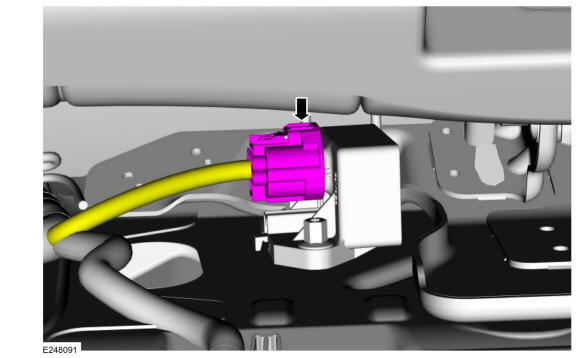

  5. Connect the fuel pump driver module electrical connector.
    GFD236381Courtesy of FORD MOTOR COMPANY

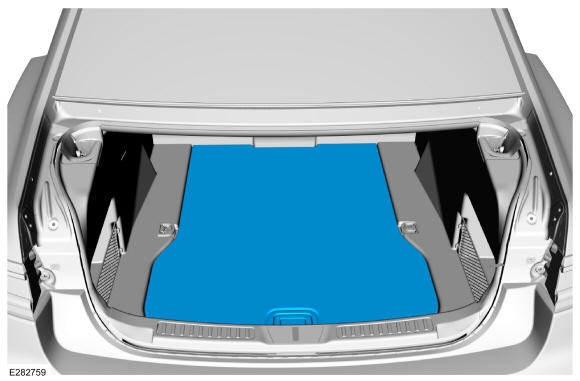

  6. Install the cover.
GFD236379Courtesy of FORD MOTOR COMPANY
