Heated Rear Seat Module: Removal
WARNING: This page is about a different car, the 2018 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear seat cushion. Refer to: Rear Seat Cushion .

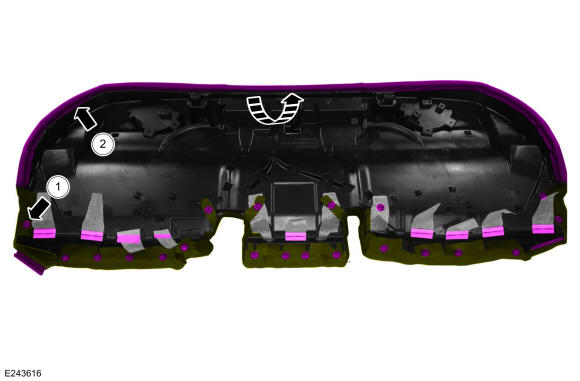

- Invert the rear seat cushion cover.
- Remove the pin-type retainers.
- Detach the J-clips.

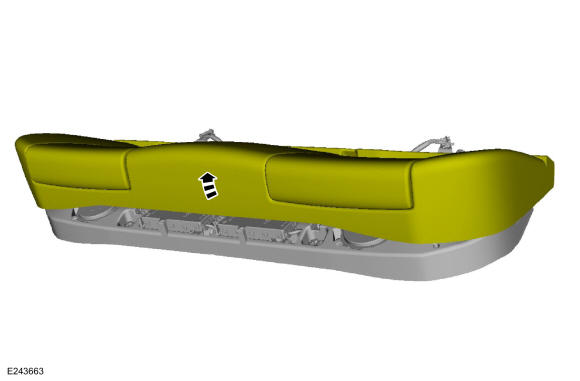

- Lift the rear seat cushion and foam from the seat frame.

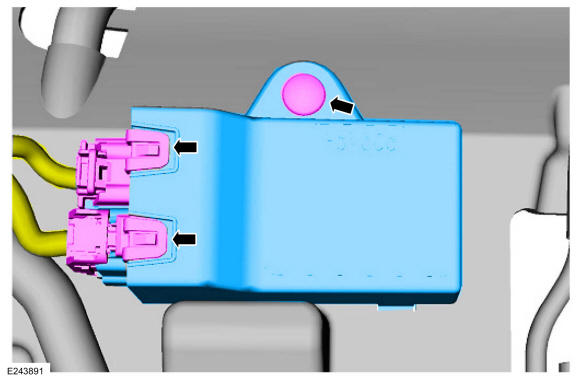

- Disconnect the electrical connectors, remove the pin-type retainer and remove the heated rear seat module.
