In-Vehicle Temperature and Humidity Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
    1. Release the clips. Use the General Equipment: Interior Trim Remover.
    2. Position the steering column opening trim panel.
    3. Disconnect the electrical connectors.
    4. Remove the bolts and the steering column opening trim panel.

      Torque: 22 lb.in (2.5 Nm)

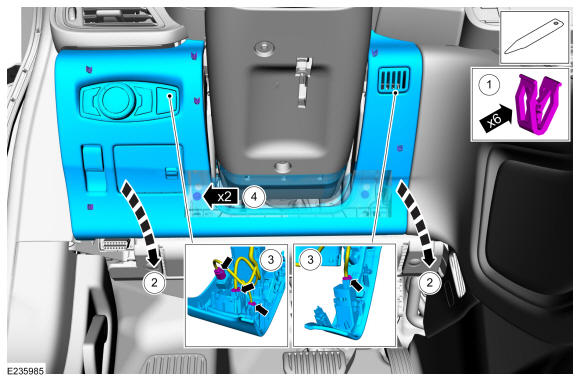

    GFD238024Courtesy of FORD MOTOR COMPANY
  2. Depress the tabs and remove the in-vehicle temperature and humidity sensor.

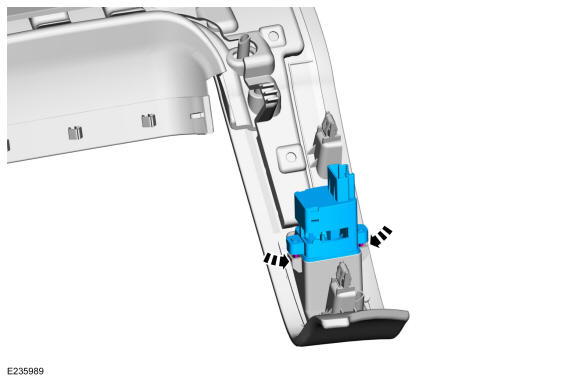

GFD238053Courtesy of FORD MOTOR COMPANY
