Catalyst Monitor Sensor: Removal

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

All sensors

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

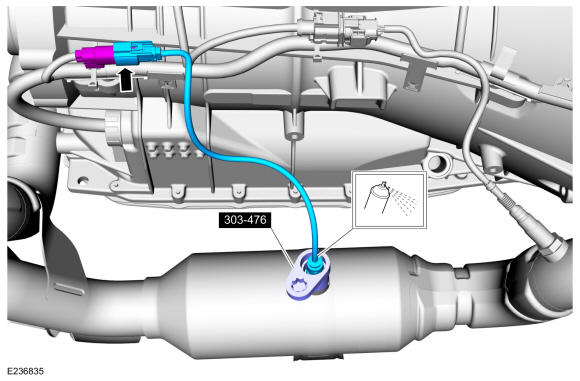

Right hand (RH) Catalyst monitor sensor
Disconnect the electrical connector. Remove the catalyst monitor sensor.
Material: Motorcraft® Penetrating and Lock Lubricant / XL-1

Courtesy of FORD MOTOR COMPANY

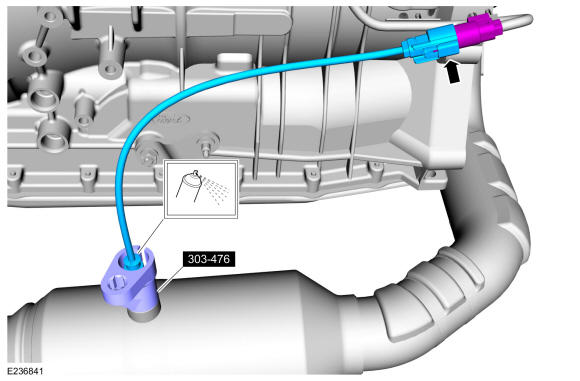

Left hand (LH) Catalyst monitor sensor
Disconnect the electrical connector. Remove the catalyst monitor sensor.
Material: Motorcraft® Penetrating and Lock Lubricant / XL-1

Courtesy of FORD MOTOR COMPANY
