Catalyst Monitor Sensor: Installation
WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

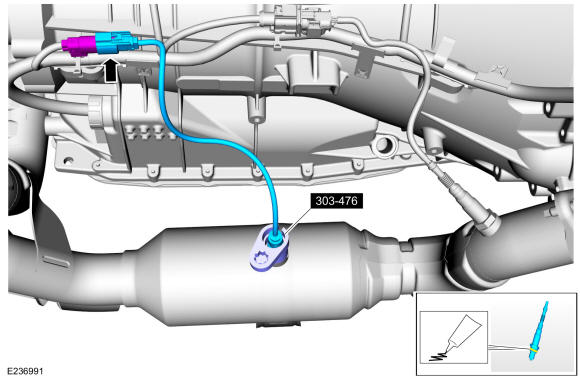

Left hand (LH) Catalyst monitor sensor
- Apply anti-seize to threads of sensor, using the special tool install the Catalyst monitor sensor. Connect the electrical connector.
Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2

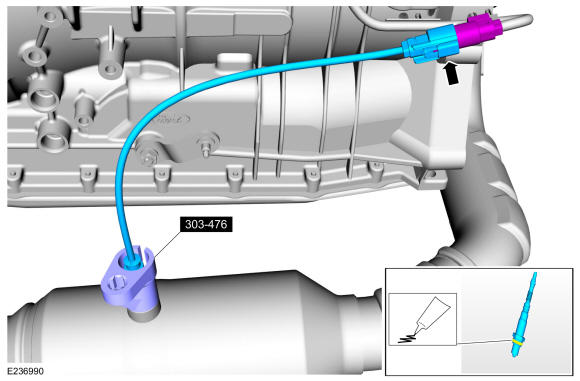

Right hand (RH) Catalyst monitor sensor
-
- Apply anti-seize to thread of sensor, Using special tool install the Catalyst monitor sensor. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2
Torque: 35 lb.ft (48 Nm)
- Connect the electrical connector.
All sensors
- Apply anti-seize to thread of sensor, Using special tool install the Catalyst monitor sensor. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
- To install, reverse the removal procedure.
