All-Wheel Drive (AWD) Module: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

  1. Remove the loadspace trim panel. Refer to: Loadspace Trim Panel - Vehicles With: 40/20/40 Split Second Row Seating . Refer to: Loadspace Trim Panel - Vehicles With: 60/40 Split Second Row Seating

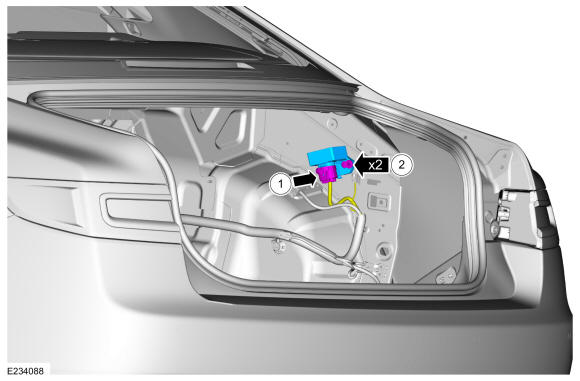

    • Disconnect the AWD module electrical connector.

    • Remove the AWD module push pin fasteners and the AWD module.

GFD422818Courtesy of FORD MOTOR COMPANY
