Rear Wheel Speed Sensor: Removal

All vehicles

1. Remove the wheel and tire. Refer to: Wheel and Tire

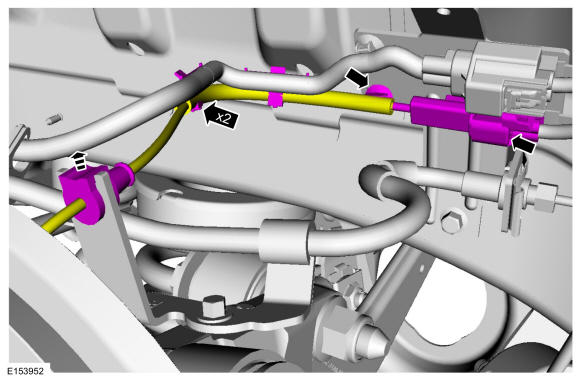

2. Disconnect the electrical connector and detach the wiring retainers

   Courtesy of FORD MOTOR COMPANY

   All wheel drive (AWD) vehicles

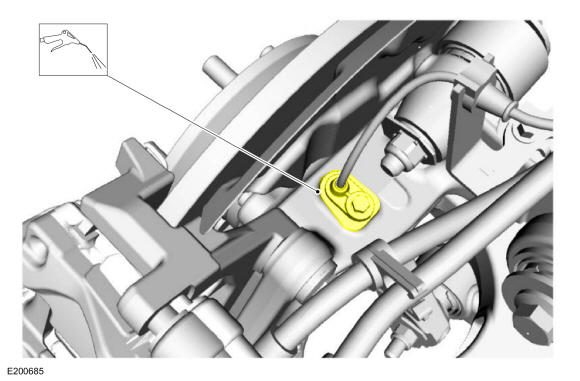

3. NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed.

   Using compressed air, clean the sensor housing area.

   Courtesy of FORD MOTOR COMPANY

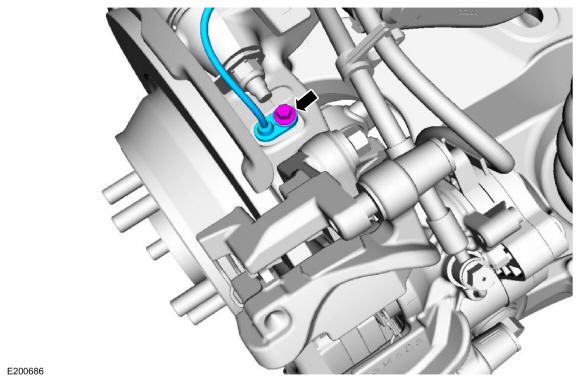

4. Remove the bolt and the rear wheel speed sensor.

   Torque: 80 lb.in (9 Nm)

   Courtesy of FORD MOTOR COMPANY

   Front wheel drive (FWD) vehicles

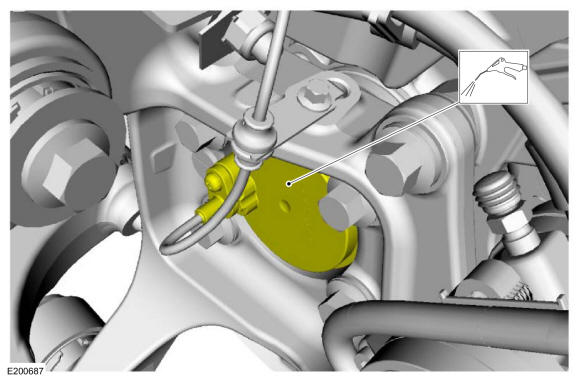

5. NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed.

   Using compressed air, clean the sensor housing area.

   Courtesy of FORD MOTOR COMPANY

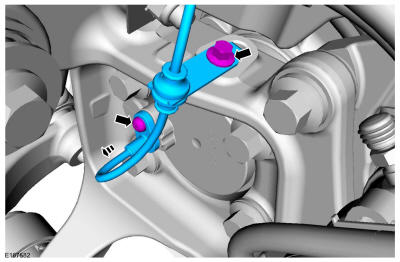

6. Remove the harness bracket bolt, the sensor bolt and the rear wheel speed sensor.

   Torque: Wheel speed sensor harness bracket bolt: 80 lb.in (9 Nm) Wheel speed sensor bolt: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY
