Throttle Body: Removal

NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
  1. Remove the air cleaner outlet pipe RH. Refer to: Air Cleaner Outlet Pipe RH .
  2. Release the clip and disconnect the charge air cooler outlet pipe.

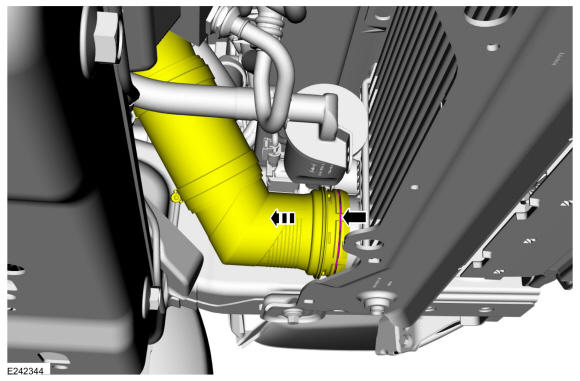

    GFD272405Courtesy of FORD MOTOR COMPANY
    1. Disconnect the quick release coupling. Refer to: Quick Release Coupling .
    2. Loosen the charge air cooler outlet pipe clamp, then disconnect the charge air cooler outlet pipe.

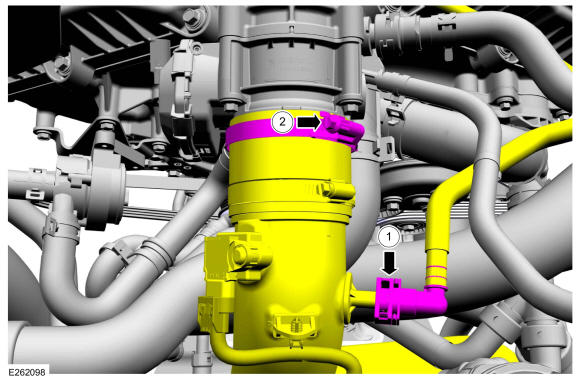

    GFD272406Courtesy of FORD MOTOR COMPANY
  4. NOTE: When disconnecting the throttle body electrical connector disengage the red locking tab on the throttle body electrical connector by sliding it to the rear of the throttle body electrical connector, away from the throttle body. Squeeze the throttle body electrical connector while removing.

    Disconnect the throttle body electrical connector.

    GFD273168Courtesy of FORD MOTOR COMPANY
  5. Remove the throttle body bolts, then remove the throttle body.
GFD273169Courtesy of FORD MOTOR COMPANY
