Head Up Display (HUD) Module: Removal

WARNING: This page is about a different car, the 2018 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations Refer toOEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

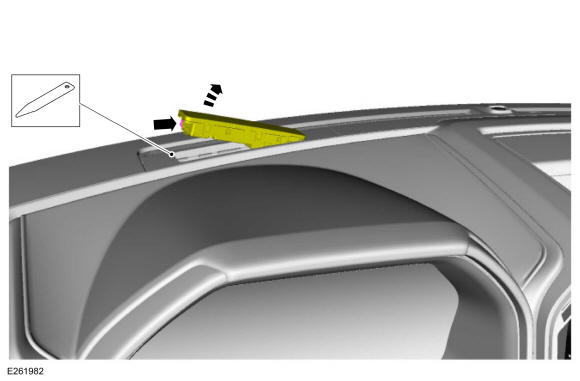

  1. Using a non-marring tool, release the HUD module tab and position the HUD module aside.
    GFD294784Courtesy of FORD MOTOR COMPANY

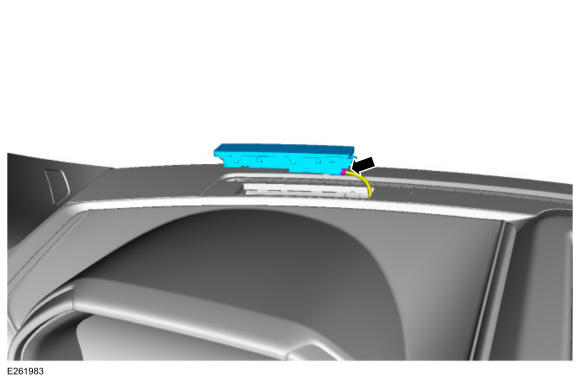

  2. Disconnect the electrical connector and remove the HUD module.
GFD294785Courtesy of FORD MOTOR COMPANY
