Global Positioning System Module (GPSM): Removal

WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current GPSM installed. If the current GPSM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Date as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the GPSM following the on-screen instructions.

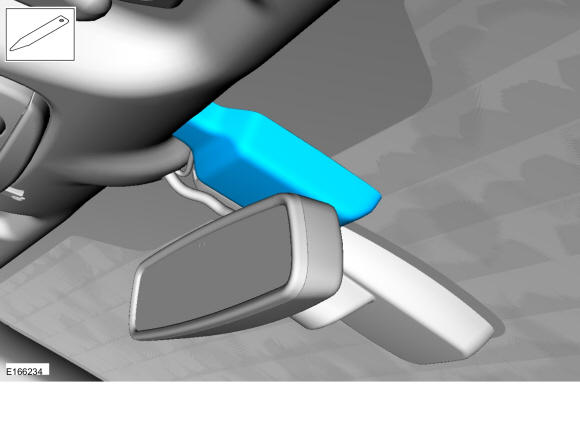

Remove the rear view mirror cover. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

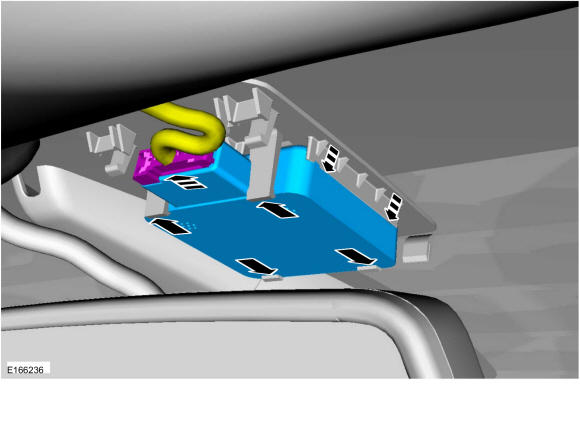

Release the clips and remove the GPSM.
- Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
