Front Control Display Interface Module (FCDIM): Removal

WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the instrument panel center upper trim panel. Refer to: Instrument Panel Center Upper Trim Panel .

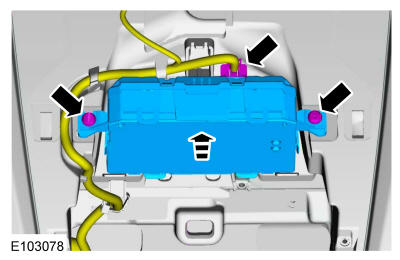

  2. Remove the bolts and the FCDIM.

    • Disconnect the electrical connector.

      Torque: 11 lb.in (1.2 Nm)

GFD302384Courtesy of FORD MOTOR COMPANY
