Catalyst Monitor Sensor 3.7L Ti-VCT: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

All sensors

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to Jacking and Lifting .
  2. GFD91394Courtesy of FORD MOTOR COMPANY

    3. RH sensor

  3. GFD92900Courtesy of FORD MOTOR COMPANY

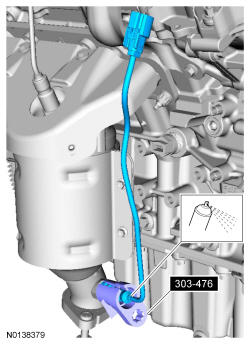

  4. Apply the specified chemical with a spray can. Penetrating and Lock Lubricant (US); Penetrating Fluid (Canada) XL-1 (US); CXC-51-A (Canada). Special Tool(s): Socket, Exhaust Gas Oxygen Sensor 303-476 (T94P-9472-A).
    GFD92901Courtesy of FORD MOTOR COMPANY

    5. LH sensor

  5. GFD92902Courtesy of FORD MOTOR COMPANY

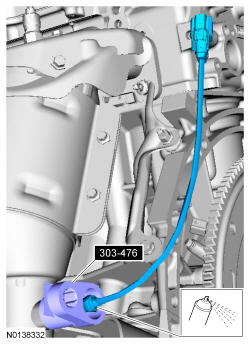

  6. Apply the specified chemical with a spray can. Penetrating and Lock Lubricant (US); Penetrating Fluid (Canada) XL-1 (US); CXC-51-A (Canada). Special Tool(s): Socket, Exhaust Gas Oxygen Sensor 303-476 (T94P-9472-A).
    GFD92903Courtesy of FORD MOTOR COMPANY
