Headlamp Control Module (HCM): Removal
WARNING: This page is about a different car, the 2018 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: If installing a new HCM, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new HCM after installation.
Using a diagnostic scan tool, begin the PMI process for the HCM following the onscreen instructions.
- Remove the steering column. Refer to: Steering Column .
-
NOTE: If equipped.
Disconnect the electrical connectors, remove the screws and the column and pedal memory module.

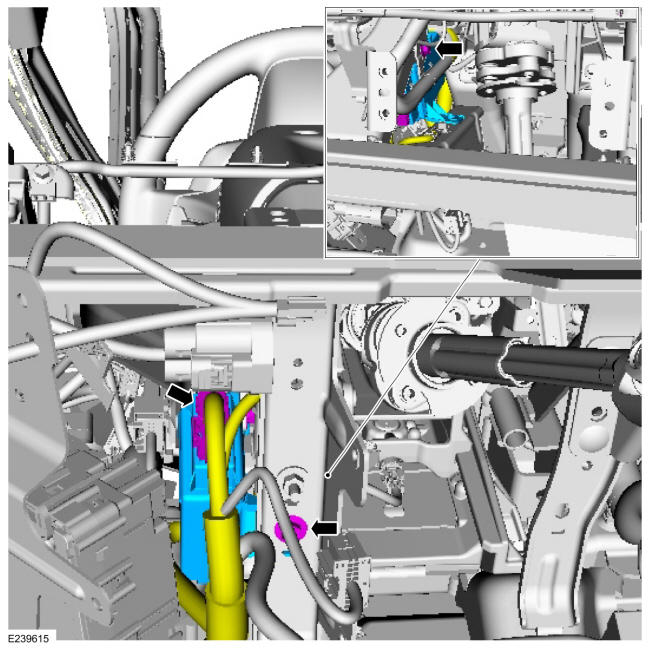

- Disconnect the electrical connector, remove the screws and the HCM.
