Home >> Lincoln >> 2018 >> Continental Select, 2.7L Eng VIN P, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Electronic Engine Controls System - 2.7L ECOBOOST (238KW/324PS) >> Removal And Installation >> Intake Air Temperature (IAT) Sensor >> Removal

Intake Air Temperature (IAT) Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

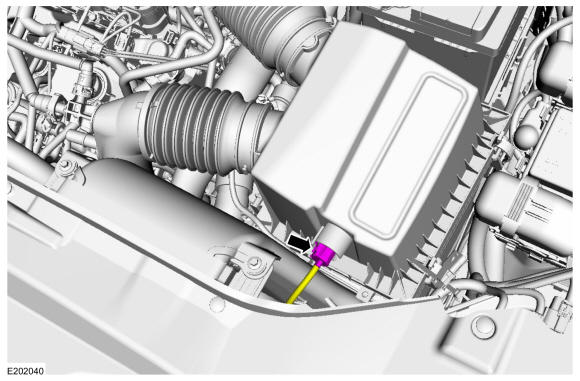

  1. Disconnect the IAT sensor electrical connector.
    GFD236760Courtesy of FORD MOTOR COMPANY

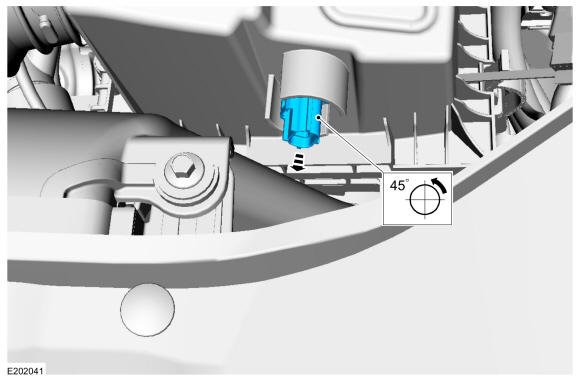

  2. Remove the IAT sensor.
GFD236761Courtesy of FORD MOTOR COMPANY
