Section 12 (OEM Wiring Diagrams Component Testing)
>>
Component Testing
>>
Seat Control Switch, 6-Way - Right
Seat Control Switch, 6-Way - Right
WARNING:
This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

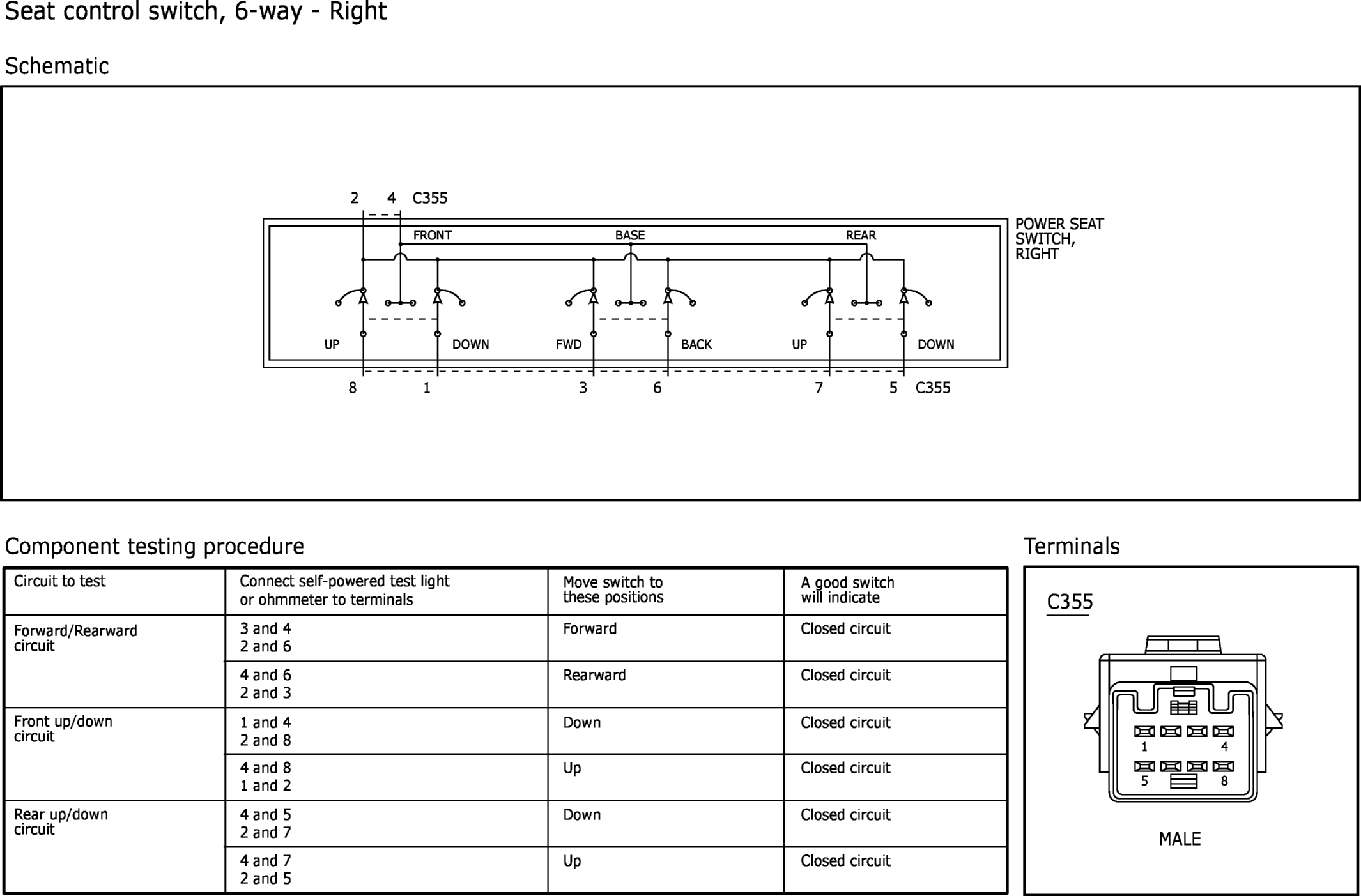

Fig 1: Seat Control Switch, 6-Way - Right
Courtesy of FORD MOTOR COMPANY
