Seat - Second Row, 40 Percent: Notes

NOTE: RH shown, LH similar.

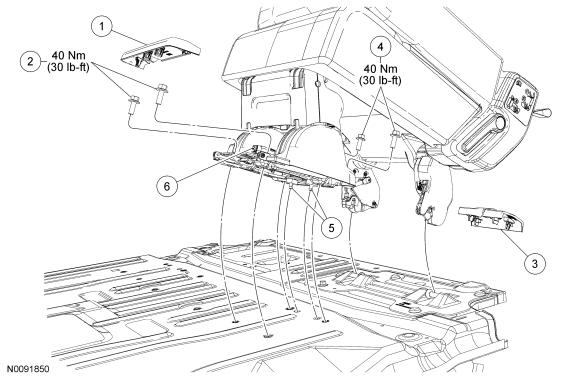

Fig 1: Second Row Seat (40 Percent) With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	638B30A	Seat-to-floor bolt front cover
2	W708175	Seat-to-floor front bolts (2 required)
3	638B30B	Seat-to-floor bolt rear cover
4	W708175	Seat-to-floor rear bolts (2 required)
5	-	Locator pins (part of 63161 frame assembly)
6	-	Electrical connector (part of 14B510) (if equipped)
