Powertrain Control Module (PCM): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. NOTE: This step is only necessary when installing a new component.

    Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Configuration - System Operation and Component Description . Use the General Equipment: Ford Diagnostic Equipment

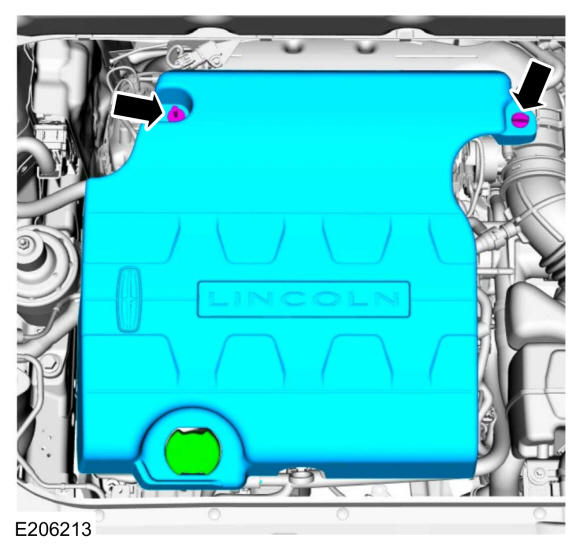

    • Remove the pushpin and screw. Remove the engine appearance cover.
    GFD219686Courtesy of FORD MOTOR COMPANY

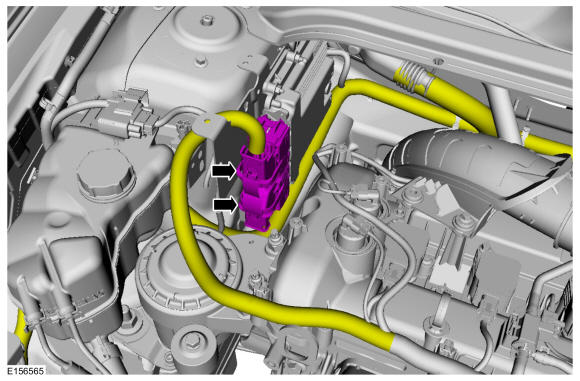

  3. Disconnect the PCM harness connectors.
    GFD219766Courtesy of FORD MOTOR COMPANY

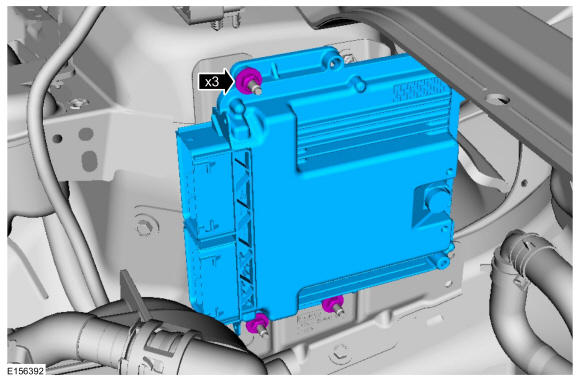

  4. Remove the retainers and the PCM.

    Torque: 89 lb.in (10 Nm)

GFD219767Courtesy of FORD MOTOR COMPANY
