Turbocharger Boost Pressure Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
2. Remove the right front wheel and tire. Refer to: Wheel and Tire .

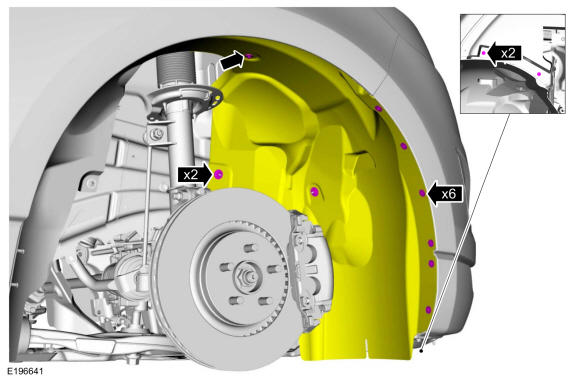

3. Remove the fasteners and position the splash shield aside.

   Courtesy of FORD MOTOR COMPANY

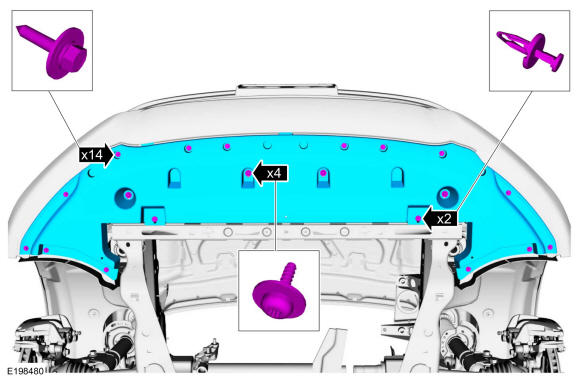

4. Remove the retainers and the front underbody shield.

   Courtesy of FORD MOTOR COMPANY

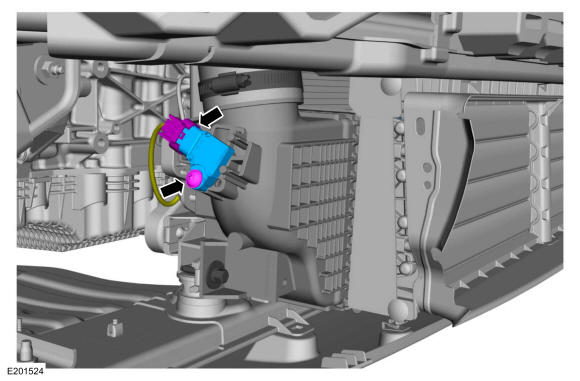

5. Disconnect the electrical connector, remove retainer and the turbocharger boost pressure sensor.

   Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
