Gearshift Module (GSM): Removal

NOTE: It is not necessary to carry out a PMI when installing a new GSM.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the FCIM. Refer to: Front Controls Interface Module (FCIM) .

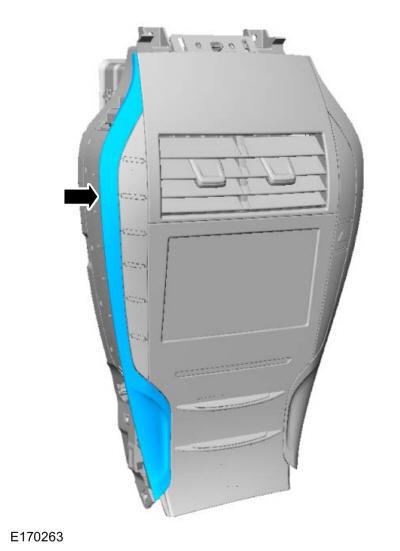

  2. Remove the trim panel.
    GFD220497Courtesy of FORD MOTOR COMPANY

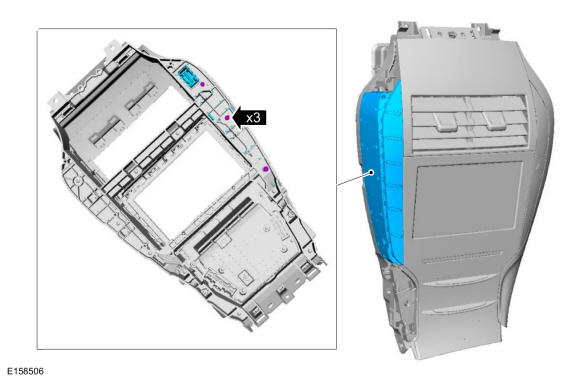

  3. Remove the screws and the GSM
GFD220498Courtesy of FORD MOTOR COMPANY
