Intake Air Temperature (IAT) Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

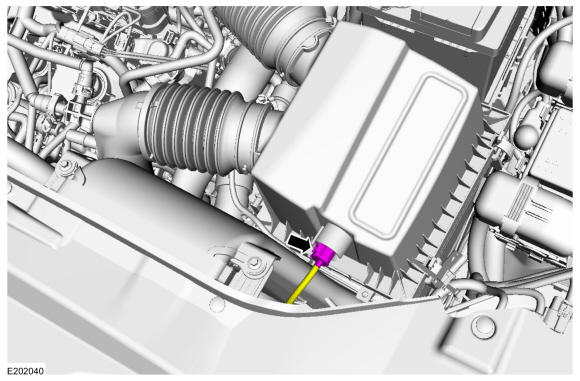

  1. Disconnect the IAT electrical connector.
    GFD219726Courtesy of FORD MOTOR COMPANY

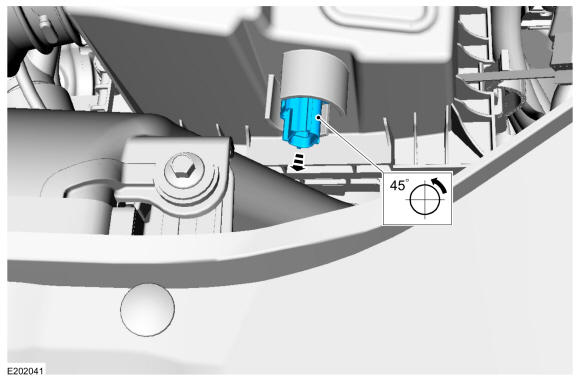

  2. Remove the IAT sensor.
GFD219727Courtesy of FORD MOTOR COMPANY
