Engine Coolant Temperature (ECT) Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the coolant outlet connector. Refer to: Coolant Outlet Connector .

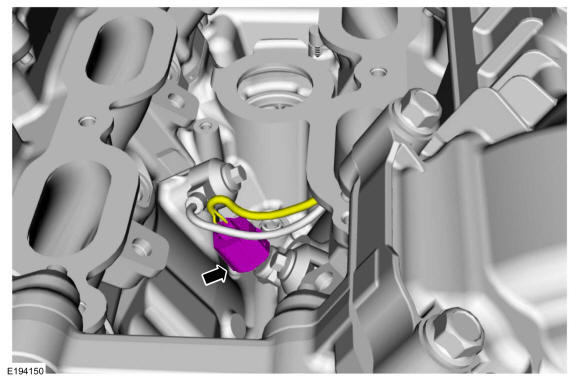

  2. Disconnect the ECT sensor electrical connector.
    GFD219714Courtesy of FORD MOTOR COMPANY

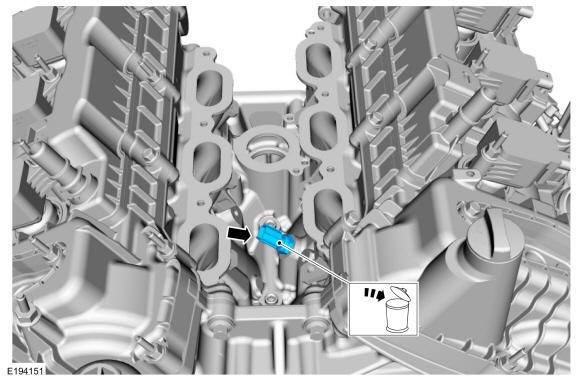

  3. NOTE: Do not reuse the ECT sensor, install a new sensor.

    Remove and discard the ECT sensor.

    Torque: 142 lb.in (16 Nm)

GFD219715Courtesy of FORD MOTOR COMPANY
