Variable Camshaft Timing (VCT) Oil Control Solenoid - 3.7L Ti-VCT: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the LH or RH valve cover. Refer to Engine 3-7L Ti-VCT .
    • To install, tighten in 2 stages.
      • Stage 1: Tighten to 8 Nm (71 lb-in).
      • Stage 2: Tighten an additional 20 degrees.

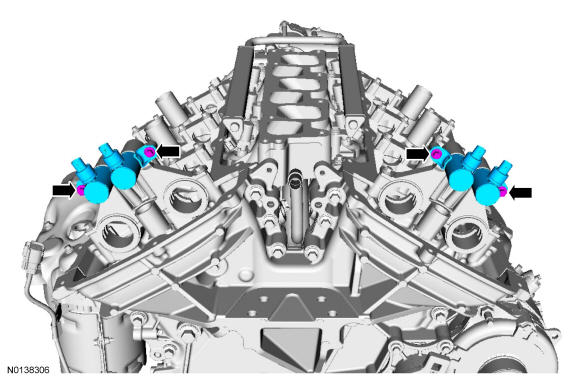

    GFD92977Courtesy of FORD MOTOR COMPANY
