Turbocharger Boost Pressure (TCBP)/Charge Air Cooler Temperature (CACT) Sensor - 3.5L GTDI: Notes
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Material
| Item | Specification |
| Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil (US); Motorcraft ® SAE 5W-30 Super Premium Motor Oil (Canada)XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada) | WSS-M2C946-A |

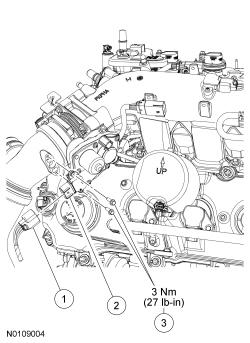

Fig 1: Exploded View Of Turbocharger Boost Pressure (TCBP)/Charge Air Cooler Temperature (CACT) Sensor With Torque Specifications (3.5L GTDI)
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Turbocharger Boost Pressure(TCBP) / Charge Air Cooler Temperature(CACT) sensor electrical connector |
| 2 | 9F479 | TCBP /CACT sensor |
| 3 | W506843 | TCBP /CACT sensor screws |
