Knock Sensor (KS): Removal

NOTE: Removal steps in this procedure may contain installation details.

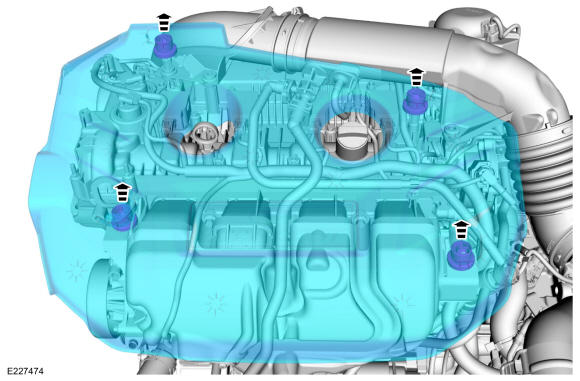

  1. NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.

    1. Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
    2. After all of the grommets have been released from the studs, remove the appearance cover from the engine.
      GFD227626Courtesy of FORD MOTOR COMPANY

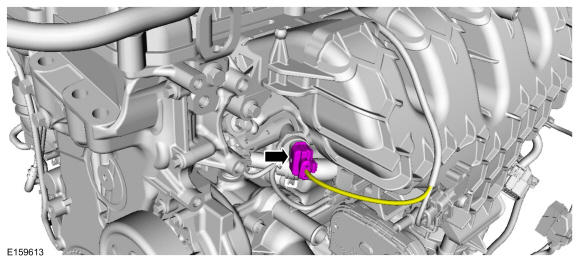

  2. GFD228711Courtesy of FORD MOTOR COMPANY

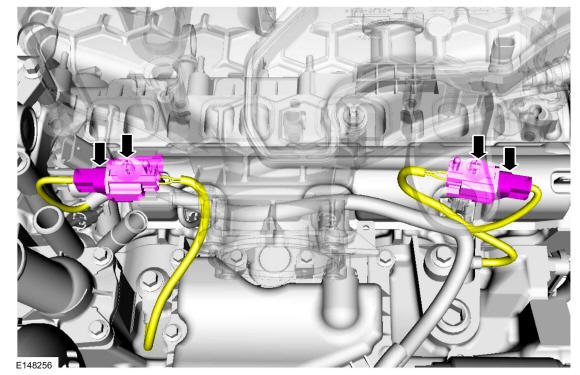

  3. GFD228712Courtesy of FORD MOTOR COMPANY

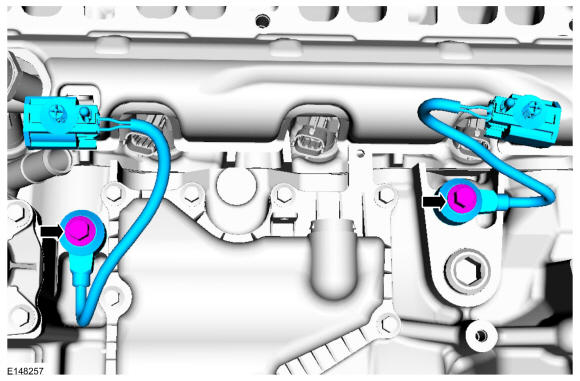

  4. NOTE: Note the position of the components before removal.

    Torque: 177 lb.in (20 Nm)

    GFD228713Courtesy of FORD MOTOR COMPANY
