Quick Release Coupling

WARNING: This page is about a different variant/trim than selected.

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 1
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .

  2. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release .
  3. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

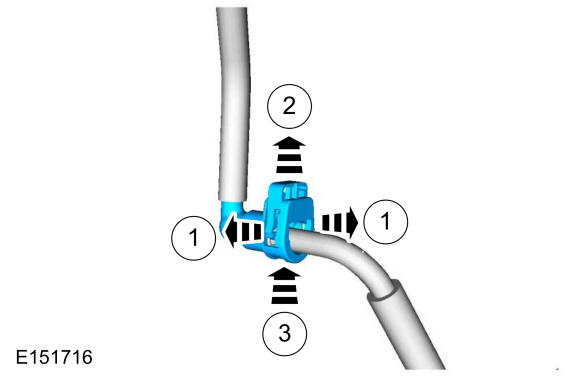

    1. Release the locking tabs.
    2. Pull up on the clip.
    3. Depress the release.
    GFD237840Courtesy of FORD MOTOR COMPANY
  5. Disconnect the quick release coupling from the tube.
GFD237841Courtesy of FORD MOTOR COMPANY

Connect

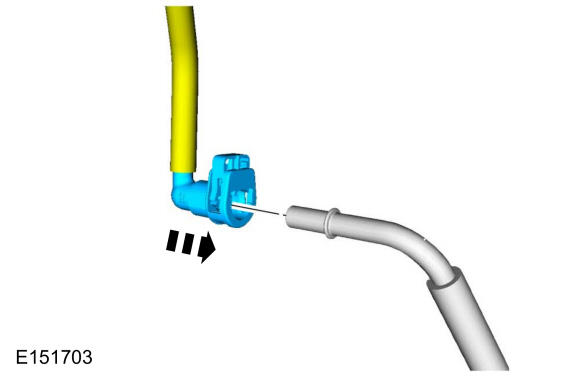

  1. Inspect and clean both quick coupling ends. Install the quick release coupling onto the tube until fully seated.
    GFD237842Courtesy of FORD MOTOR COMPANY
  2. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

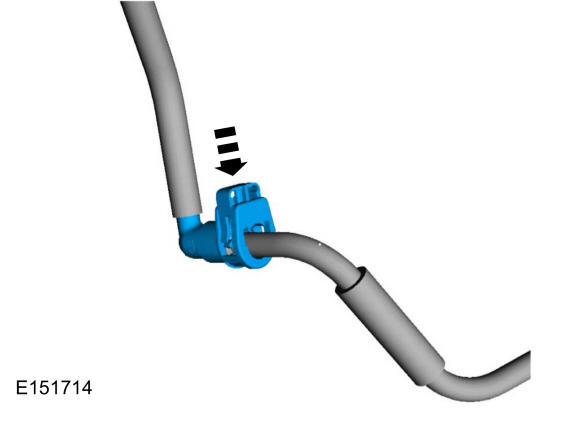

    Press the retainer clip into the quick connect coupling body until flush and the tabs are locked in place.

    GFD237843Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 2
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .

  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  3. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

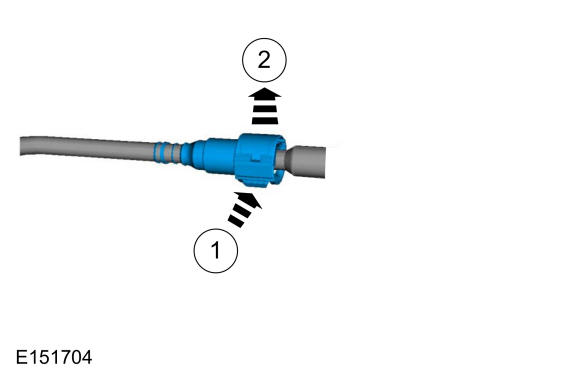

  4. Squeeze the quick release coupling retainer locking tabs to release the locking mechanism and push the locking mechanism outward to release the tube.
    GFD237844Courtesy of FORD MOTOR COMPANY

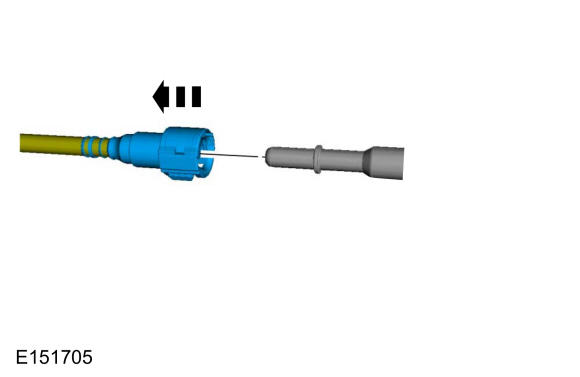

  5. Remove the quick release coupling from the tube.
GFD237813Courtesy of FORD MOTOR COMPANY

Connect

  1. Install the quick release coupling onto the tube until fully seated.
    GFD237845Courtesy of FORD MOTOR COMPANY

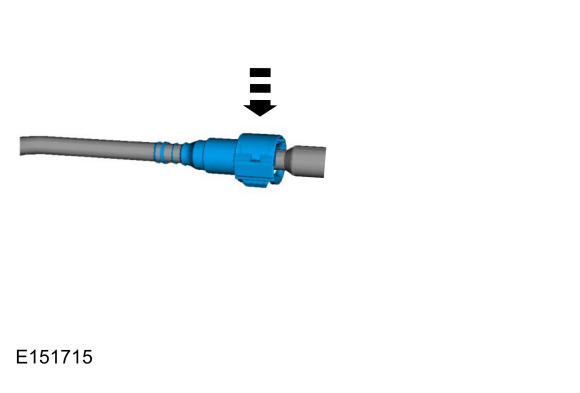

  2. Depress the quick release coupling locking mechanism into the locked position.
    GFD237815Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 3
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .

  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - 3.0L EcoBoost .
  3. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

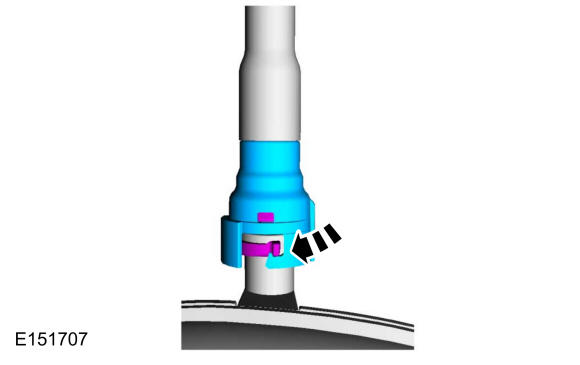

  4. Release the locking tab on the quick release coupling and separate from the fitting.
GFD237816Courtesy of FORD MOTOR COMPANY

Connect

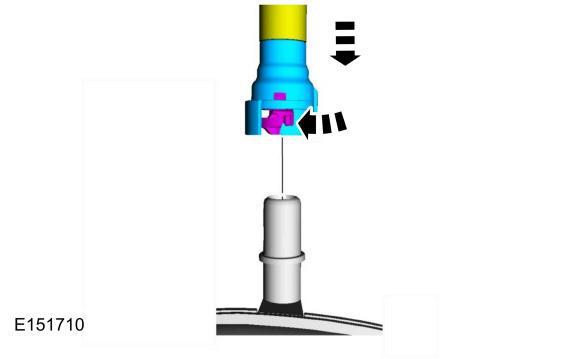

  1. Release the locking tab and install the quick release coupling onto the fitting.
    GFD237817Courtesy of FORD MOTOR COMPANY

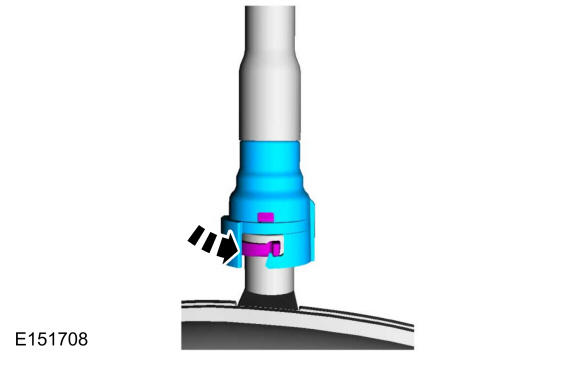

  2. Position the locking tab into the locked position.
    GFD237818Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 4
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .

  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost .
  3. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

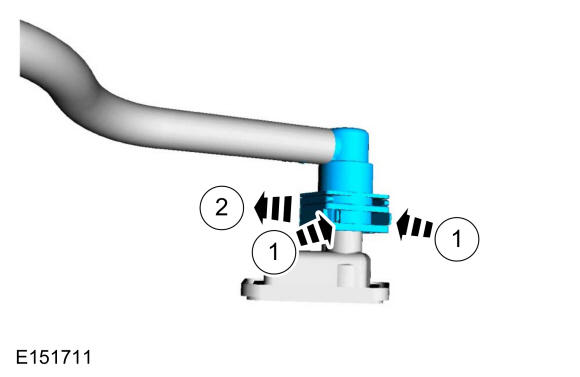

  4. Squeeze the quick release coupling retainer locking tabs to release the locking mechanism and push the locking mechanism outward to release the tube.
    GFD237819Courtesy of FORD MOTOR COMPANY

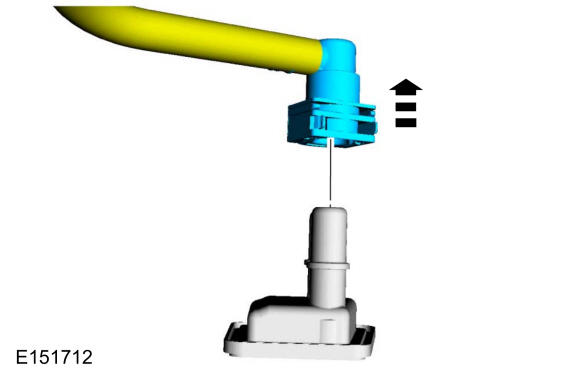

  5. Remove the quick release coupling from the tube.
GFD237820Courtesy of FORD MOTOR COMPANY

Connect

  1. Install the quick release coupling onto the tube.
    GFD237821Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 5
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .

  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost .
  3. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

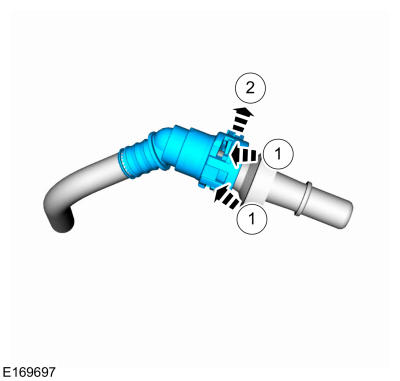

    1. Release the secondary locking tabs.
    2. Pull out on the primary locking tab.
    GFD237822Courtesy of FORD MOTOR COMPANY

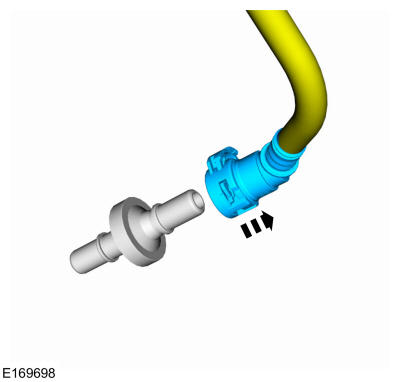

  5. Separate the quick release coupling from the tube.
GFD237823Courtesy of FORD MOTOR COMPANY

Connect

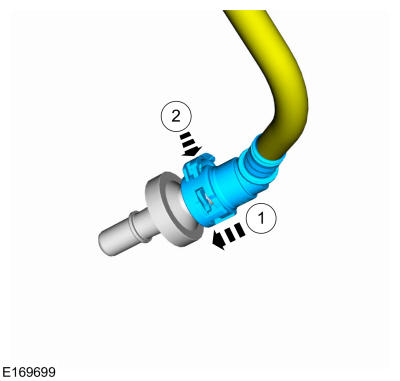

    1. Push the quick release coupling onto the tube.
    2. Lock the secondary locking tab.
    GFD237824Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 6
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .

  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost .
  3. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
  4. Release the locking tab on the quick release coupling and separate from the fitting.
    GFD237846Courtesy of FORD MOTOR COMPANY

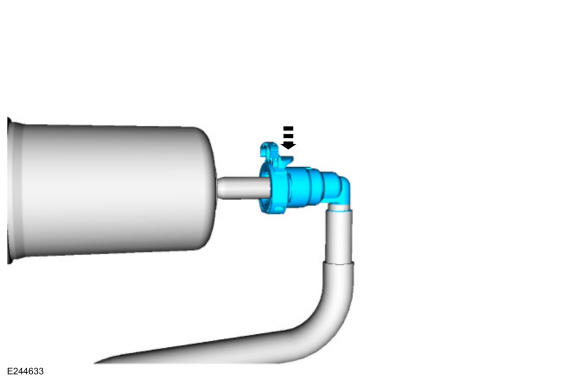

  5. Press down on the locking tab on the quick release coupling.
    GFD237847Courtesy of FORD MOTOR COMPANY

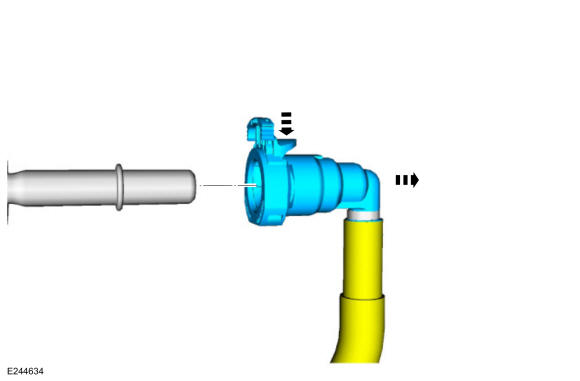

  6. While pressing down on the locking tab on the quick release coupling and separate from the fitting.
GFD237827Courtesy of FORD MOTOR COMPANY

Connect

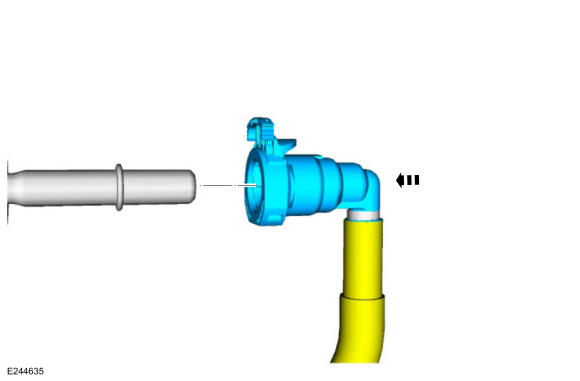

  1. While the locking tab is in the unlocked position, install the quick release coupling onto the fitting.
    GFD237828Courtesy of FORD MOTOR COMPANY

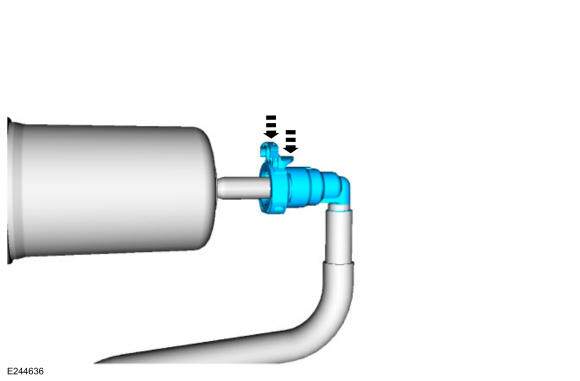

  2. Position the locking tab into the locked position.
    GFD237829Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
