Differential Gear Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.

  1. 1.

    Check for damage or excessive wear. Visual check.

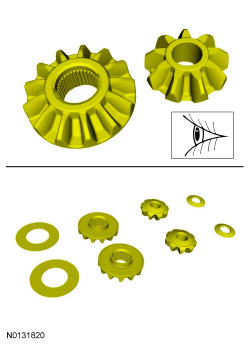

GFD94023Courtesy of FORD MOTOR COMPANY

  1. 2.

    Check for damage or excessive wear. Visual check.
GFD94024Courtesy of FORD MOTOR COMPANY

  1. 3.

    Check that bearings spin freely and do not move back and forth or side to side excessively. Check for damage or excessive wear. Visual check.

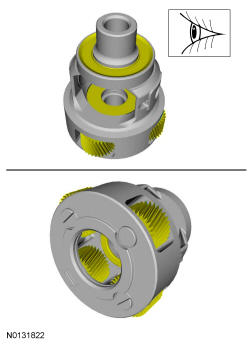

GFD94025Courtesy of FORD MOTOR COMPANY

  1. 4.

    NOTE: Do not mix up the washers from the side or spider gears that they were originally assembled with. Assembly of the differential with the wrong washers can cause excessive wear to the differential carrier, spider or side gears.
GFD94026Courtesy of FORD MOTOR COMPANY

  1. 5.

GFD94027Courtesy of FORD MOTOR COMPANY

  1. 6.

GFD94028Courtesy of FORD MOTOR COMPANY

  1. 7.

    Align the roll pin holes. Visual check.
GFD94029Courtesy of FORD MOTOR COMPANY

  1. 8.

    New roll pin. Pin punch.
GFD94030Courtesy of FORD MOTOR COMPANY
