Cruise Control Module (CCM): Removal
WARNING: This page is about a different car, the 2016 Lincoln MKX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
Cruise control module (CCM)
-
NOTE: If installing a new CCM, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new CCM after installation.
Using a diagnostic scan tool, begin the PMI process for the CCM following the onscreen instructions.
- Remove the front bumper cover. Refer to: Front Bumper Cover .

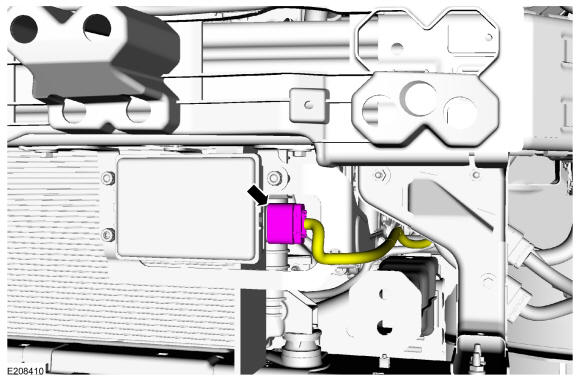

- Disconnect the CCM electrical connector.

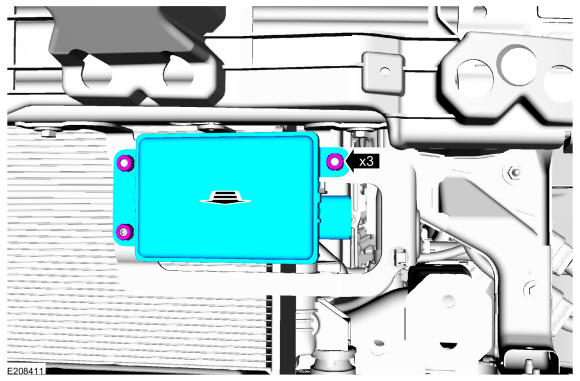

- Separate the CCM grommets and remove the CCM.

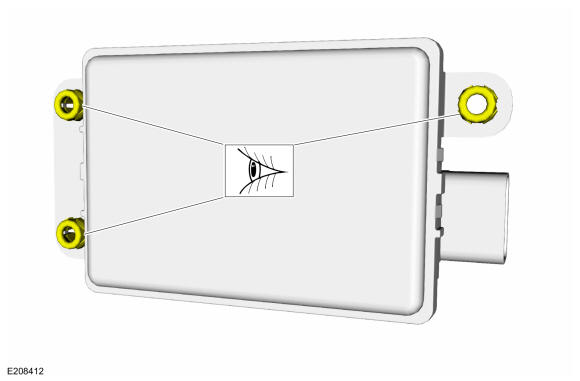

- Inspect the grommets for damage. If damaged, install new grommets.
Cruise control module (CCM) bracket
- Remove the CCM.

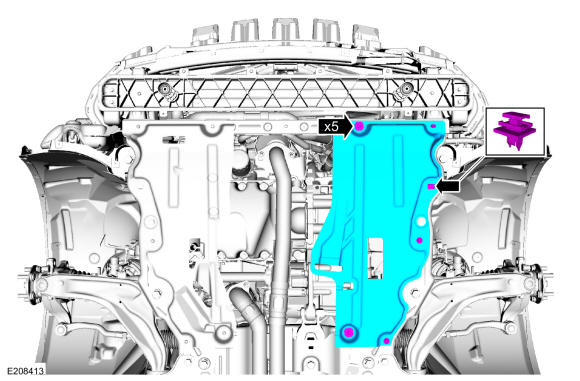

- Remove the screws, retainer and the LH under engine shield.

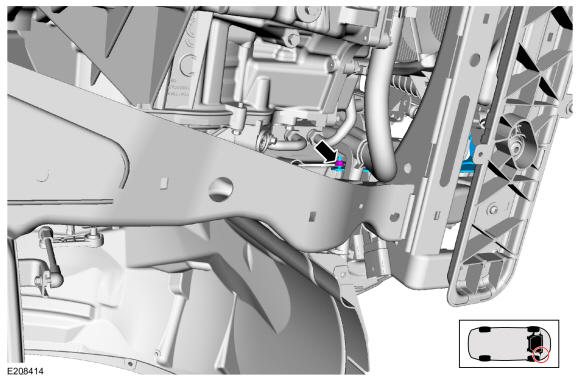

- Remove the rear CCM bracket nut.
Torque: 80 lb.in (9 Nm)
- Remove the CCM bracket.

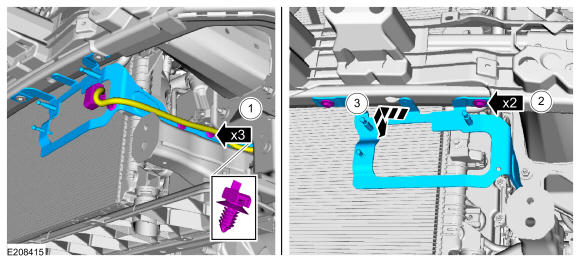

- Separate the wiring harness retainers.
- Remove the CCM bracket bolts.
Torque: 80 lb.in (9 Nm)
- Slide the CCM bracket out of the front bumper slot.
