Driver Front Seat Module (DSM): Removal

WARNING: This page is about a different car, the 2015 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current DSM installed. If the current DSM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the DSM following the on-screen instructions.

2.

Move the driver front seat to the full rearward and full upward position.

Courtesy of FORD MOTOR COMPANY

3.

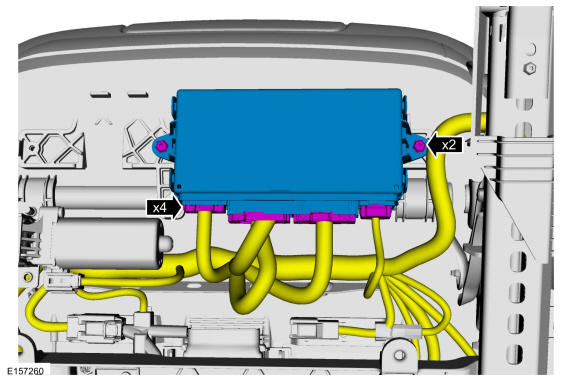

Disconnect the 4 electrical connectors, remove 2 screws and the DSM.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
