Body Control Module (BCM): Removal

WARNING: This page is about a different car, the 2015 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

NOTE: If the BCM did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCM is being replaced

Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions.

2.

NOTE: The PAM is integral to the BCM. This step is only necessary if the BCM is being replaced.

Using a diagnostic scan tool, begin the PMI process for the PAM following the on-screen instructions.

3.

Remove the glove compartment. Refer to: Glove Compartment

4.

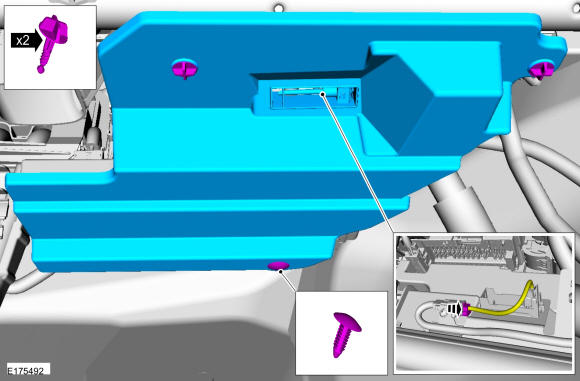

Remove the lower RH side instrument panel insulator.
- Disconnect the electrical connector.

GFD79258

Courtesy of FORD MOTOR COMPANY

5.

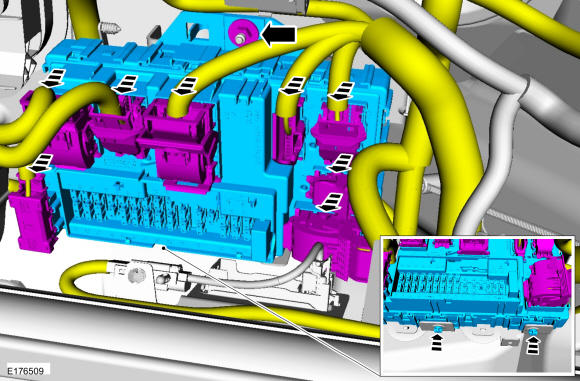

Disconnect the 8 electrical connectors, remove the fastener and the BCM.
Torque

: 44 lb.in (5 Nm)

GFD79551

Courtesy of FORD MOTOR COMPANY
