Side Obstacle Detection Control Module: Removal

NOTE: LH side shown, RH side similar.

NOTE: This step is only necessary if the SODL or SODR is being replaced.

1. Using a diagnostic scan tool, begin the PMI process for the SODL or SODR following the on-screen instructions.
2. Remove the rear wheel and tire. REFER to: Wheel and Tire .
3. Remove the rear quarter panel moulding. REFER to: Rear Quarter Panel Moulding .

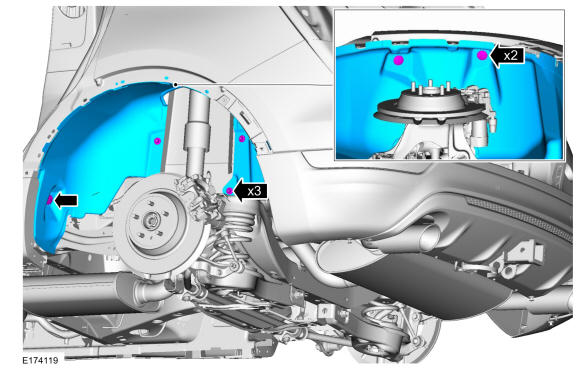

4. Remove the 3 nuts, the 3 pin-type retainers and the rear inner fender liner.

   Courtesy of FORD MOTOR COMPANY

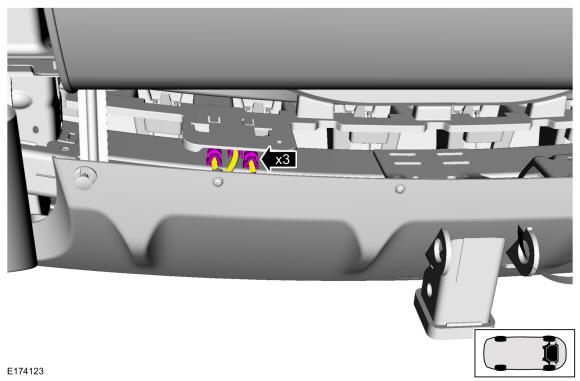

5. Disconnect the 3 electrical connectors.

   Courtesy of FORD MOTOR COMPANY

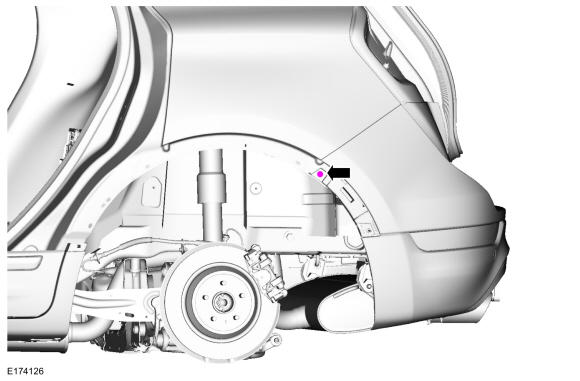

6. Remove the bolt.

   Courtesy of FORD MOTOR COMPANY

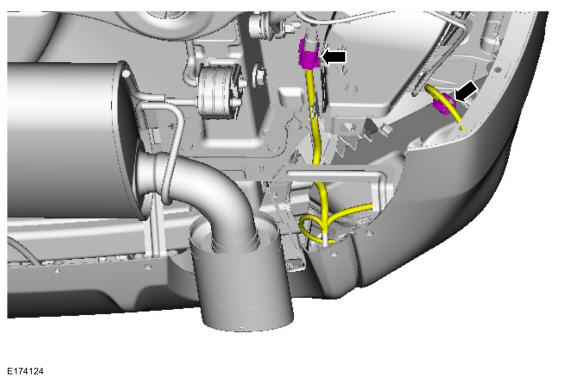

7. Disconnect 2 electrical connectors.

   Courtesy of FORD MOTOR COMPANY

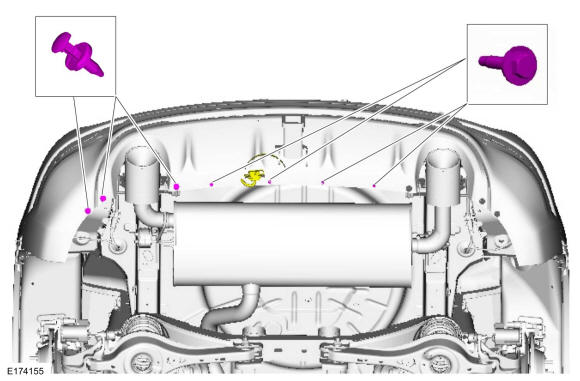

8. Remove 3 push pins and 4 bolts.

   Courtesy of FORD MOTOR COMPANY

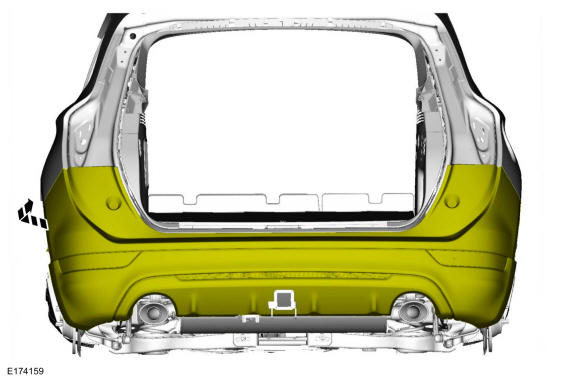

9. Position the required side of the rear bumper cover outward and rearward.

   Courtesy of FORD MOTOR COMPANY

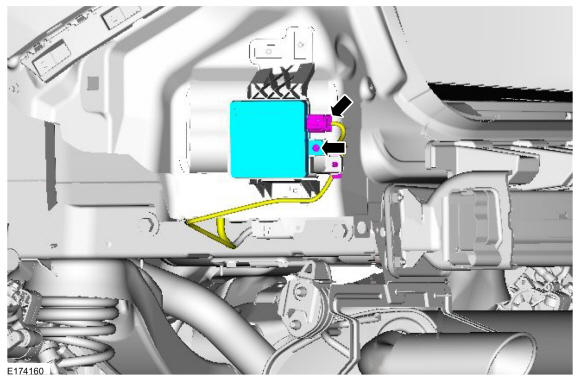

10. 1. Disconnect the electrical connector.
    2. Remove the screw and the SODL.

    Courtesy of FORD MOTOR COMPANY

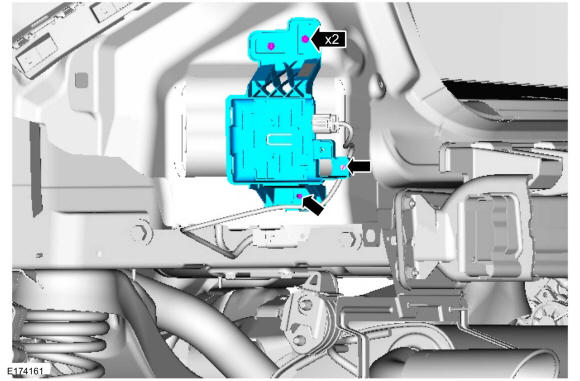

11. NOTE: The following steps are only necessary if a new component is being installed.
    1. Remove 2 bolts.
    2. Disconnect the wiring harness retainer.
    3. Remove the screw and the SODL bracket.

Courtesy of FORD MOTOR COMPANY
