Ambient Air Temperature Sensor: Removal
WARNING: This page is about a different car, the 2016 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Expedition shown in illustration, Navigator similar.

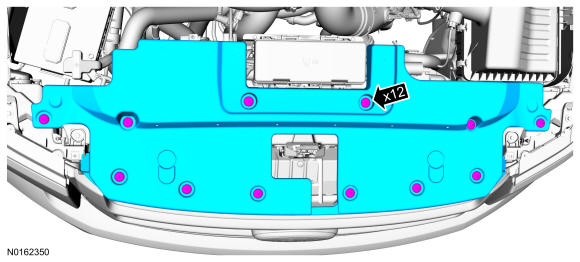

- 1.
Remove the pin-type retainers and the upper air deflector.
 Courtesy of FORD MOTOR COMPANY
|
- 2.
Detach and disconnect the ambient temperature sensor electrical connector.
- 3.
Remove the ambient air temperature sensor.

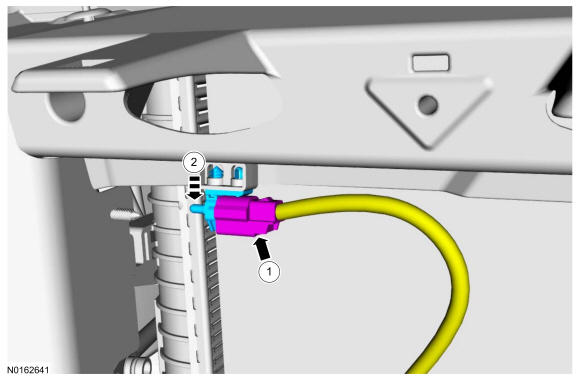

- 1.
Disconnect the ambient air temperature sensor electrical connector.
- 2.
Detach and remove the ambient air temperature sensor.
 Courtesy of FORD MOTOR COMPANY
|
