Washer System

WARNING: This page is about a different car, the 2016 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

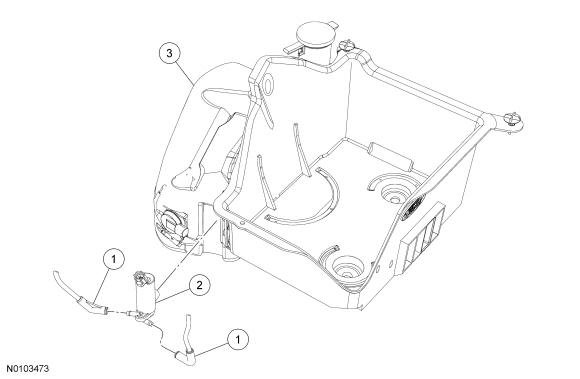

GFD32574Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 - Windshield washer pump hoses
2 - Windshield washer pump
3 - Windshield washer reservoir (part of battery tray assembly)

  1. 1.

    For additional information, refer to the procedures in this article.
