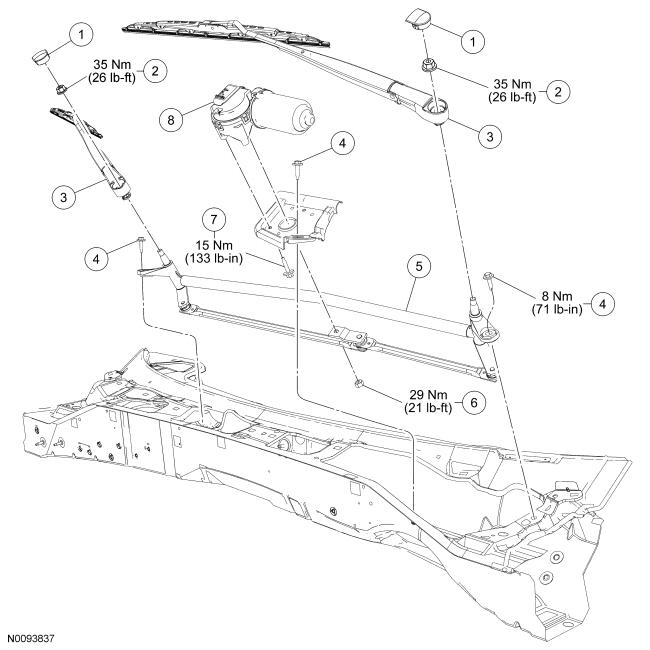

Front Wiper System
WARNING: This page is about a different car, the 2016 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Wiper pivot arm nut covers (2 required) |
| 2 | W707014 | Wiper pivot arm nuts |
| 3 | 17526 | Wiper pivot arms (LH and RH) |
| 4 | N808988 | Wiper pivot arm linkage bolts (3 required) |
| 5 | 17508A | Wiper pivot arm linkage assembly (includes wiper motor) |
| 6 | - | Wiper motor crank nut |
| 7 | - | Wiper motor attachment bolt (3 required) |
| 8 | 17504 | Wiper motor |
