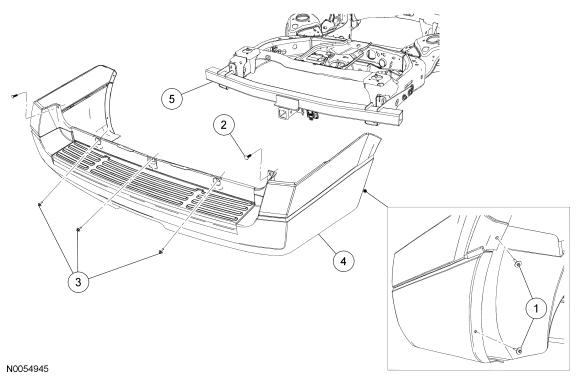

Bumper Exploded View, Rear
WARNING: This page is about a different car, the 2016 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:
Expedition shown in illustration, Navigator similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | Rear fender splash shield screws (4 required) | |
| 2 | Pin-type retainer (2 required) | |
| 3 | Rear bumper cover bolts (3 required) | |
| 4 | Rear bumper cover | |
| 5 | Rear bumper | |
