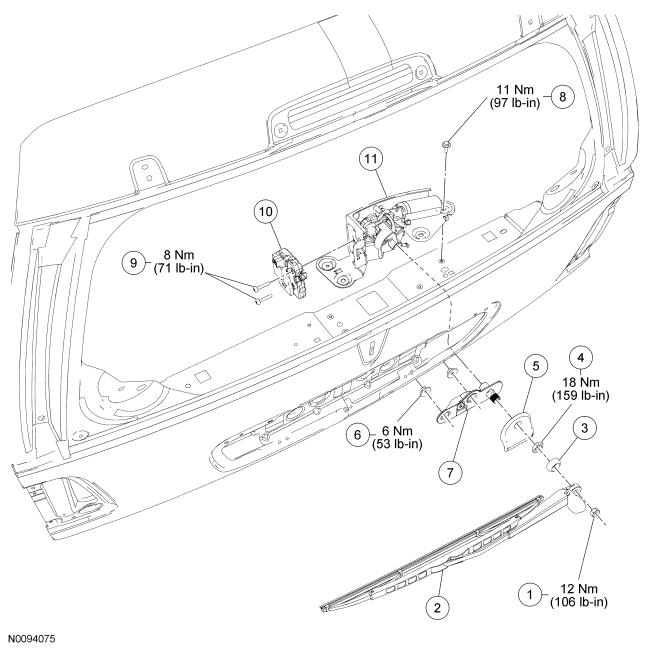

Rear Wiper System
WARNING: This page is about a different car, the 2016 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W708312 | Wiper pivot arm nut |
| 2 | 17526 | Wiper pivot arm assembly |
| 3 | 17C526A | Dust boot cover |
| 4 | W710357 | Handle retaining nut |
| 5 | 44009 | Rear window glass handle |
| 6 | - | Striker latch nut (2 required) |
| 7 | 17C426 | Striker latch assembly |
| 8 | - | Wiper motor bracket bolt (4 required) |
| 9 | 421A00 | Latch assembly bolts (2 required) |
| 10 | 40860 | Latch assembly |
| 11 | 17508 | Wiper motor assembly |
