Headlamp Switch: Notes
WARNING: This page is about a different car, the 2016 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

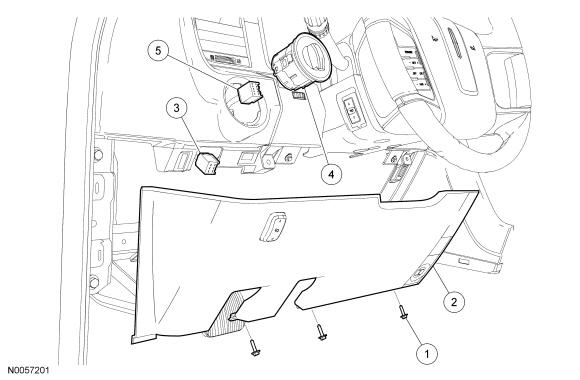

Expedition
| Item | Part Number | Description |
|---|---|---|
| 1 | LH lower instrument panel finish panel screw | |
| 2 | LH lower instrument panel finish panel | |
| 3 | - | Electrical connector (part of 14401) |
| 4 | Headlamp switch | |
| 5 | - | Headlamp switch electrical connector (part of 14401) |

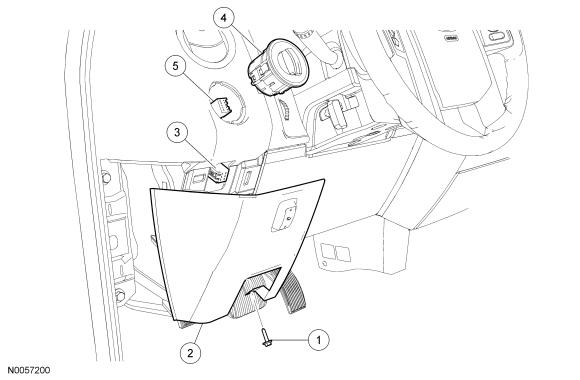

Navigator
| Item | Part Number | Description |
|---|---|---|
| 1 | Steering column finish panel screws (3 required) | |
| 2 | Steering column finish panel | |
| 3 | - | Electrical connector (part of 14401) |
| 4 | Headlamp switch | |
| 5 | - | Headlamp switch electrical connector (part of 14401) |
